< Back to Lathes
Special Item

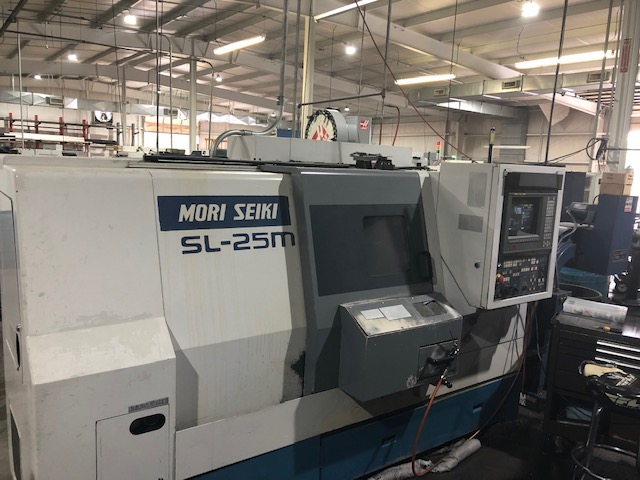

1996 MORI SEIKI SL-25MC/500

Fanuc 0T, 2.63" Bar, 10" Chk, 13.4" Max Dia, 21.7" Length, 20HP, 3500 RPM, 10 Tools (5 Live), Tool Presetter, APC, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.63"
  • Max Swing Over Bed / Carriage 20.5" / 13.8"
  • Max Machining Length 21.7"
  • Spindle Motor 20 / 15 HP
  • Spindle Speed 35 - 3500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 3.15"

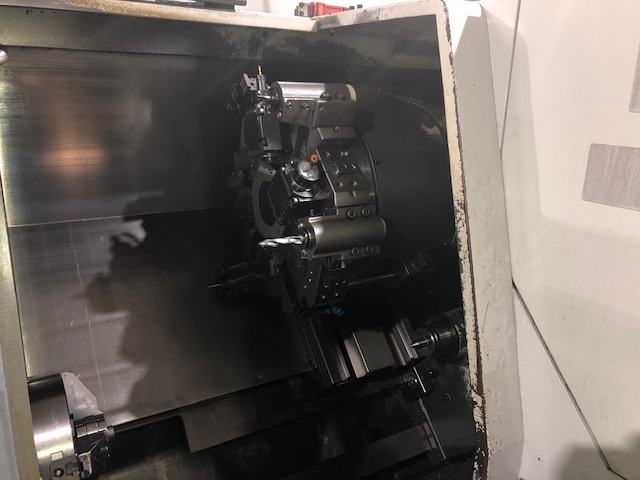

  • Tools 10 (5 Live)
  • Milling Motor 5 HP
  • Milling Speed 3000 RPM
  • Rapid Traverse Rates (X / Z) 472 / 590 IPM
  • X-Axis Travel 11.2"
  • Z-Axis Travel 23.2"
  • C-Axis Index .001 Degrees
  • Turret Index (Single Step) 1.3 Seconds
  • Machine Dimensions (L x W x H) 123" x 60" x 79"
  • Machine Weight 12,000 lbs.
  • Max Turning Diameter (Std / Max) 9.1" / 13.4"

Product Features

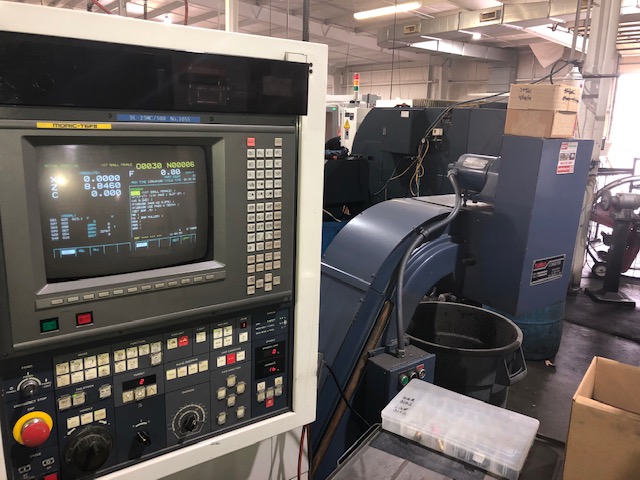

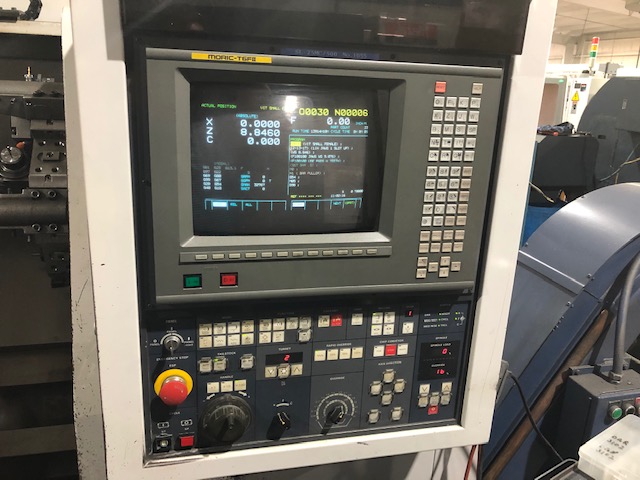

  • MORIC T6FII (FANUC) CNC CONTROL
  • 9" Monochrome CRT
  • C-Axis Milling Capability

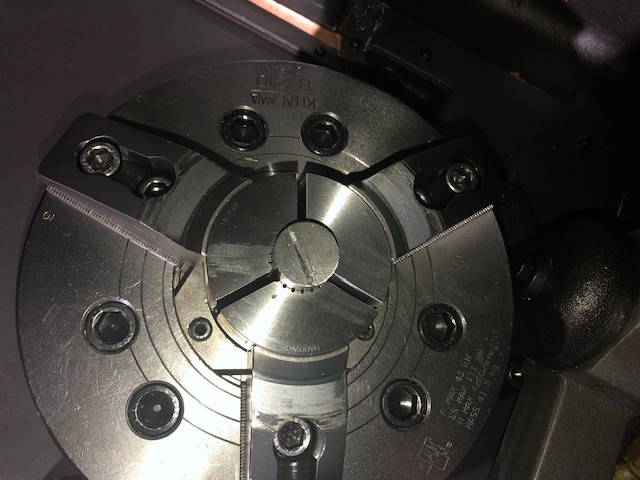

  • 10" Kitagawa B210 Hydraulic Chuck
  • Tool Presetter
  • Auto Parts Catcher
  • Tailstock
  • Chip Conveyor (Side Exit)
  • Slant Bed Box Way Construction
