< Back to Lathes

Special Item

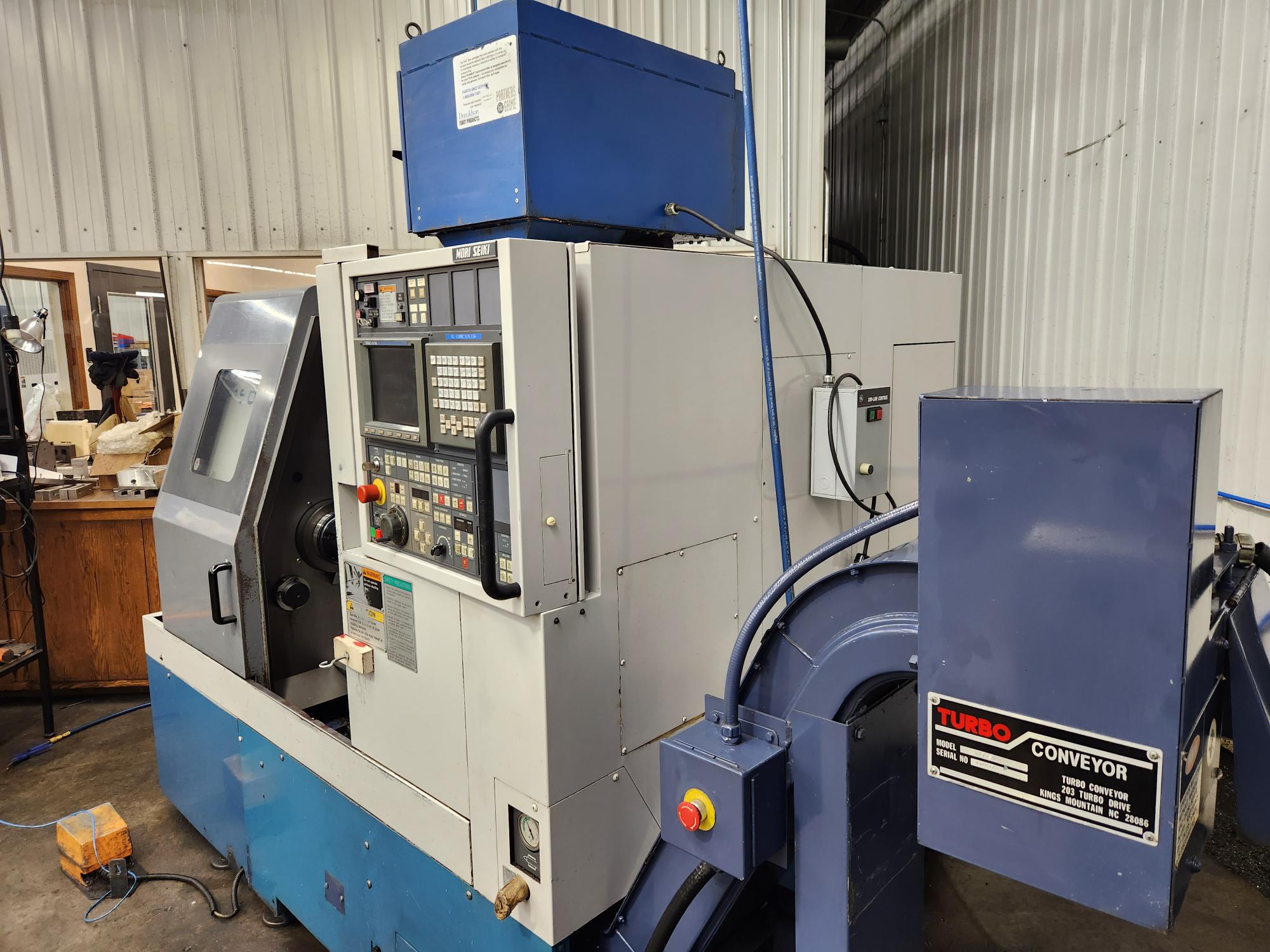

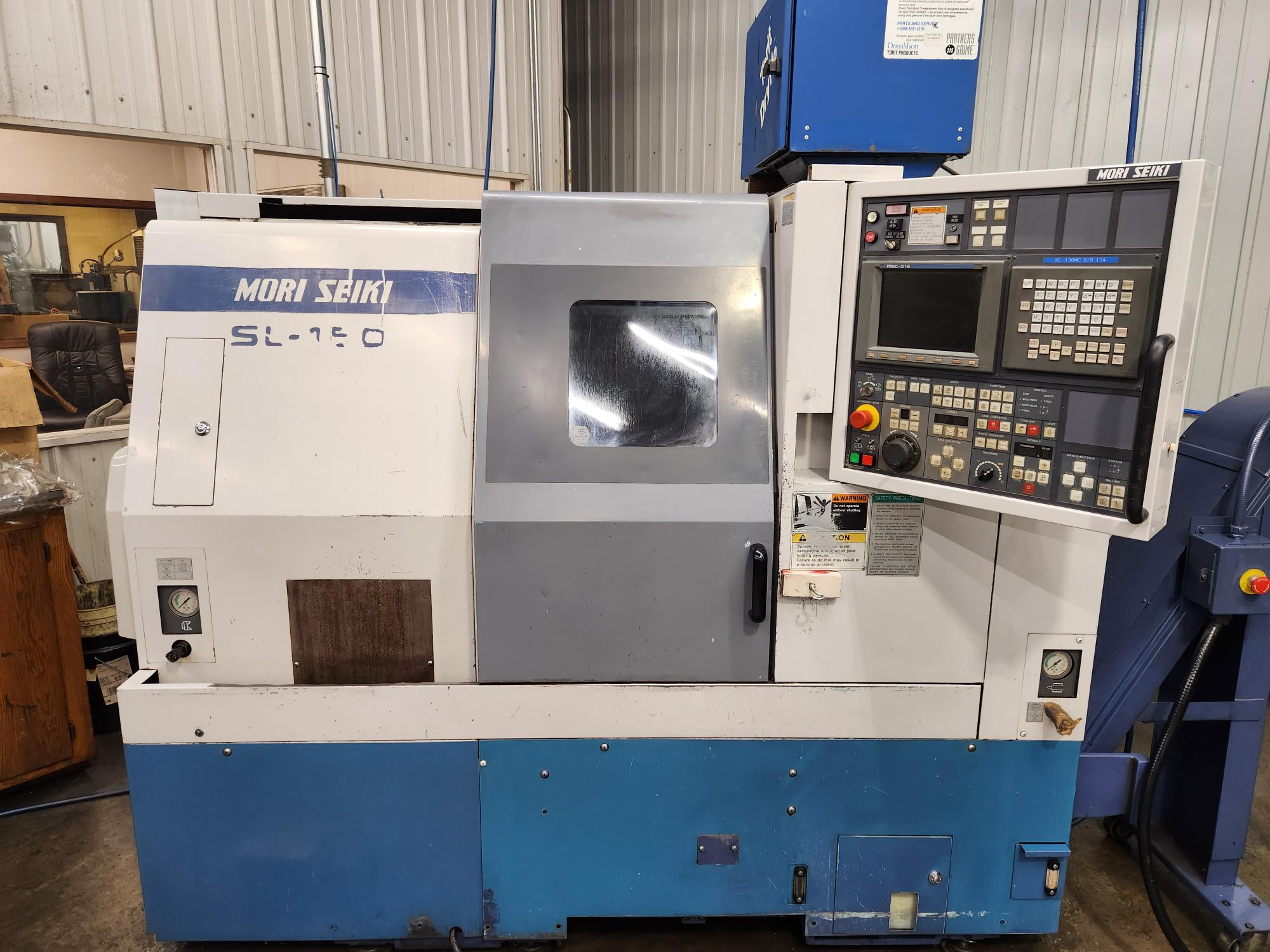

1996 MORI SEIKI SL-150MC

Fanuc 18T, 1.7" Bar, 6" Chuck, 5000 RPM, 12 Tools, 15 HP, C-Axis Live Tooling, Tow-Along Tailstock, Tool Presetter, Chip Conveyor, Mist Collector

Talk to a representative today!
(803) 548-8000

Product Details

Chuck Size 6"
Max Diameter Bar Capacity 1.7"
Max Swing Over Bed / Carriage 26.8" / 17.9"
Max Machining Length 20.47"
Spindle Motor 10 / 7.5 HP AC
Spindle Speed 50 - 5000 RPM
Spindle Nose A2-5
Spindle Bore 2.2"
Tools 12 (All Live)
Milling Motor 5 HP

Milling Speed 3000 RPM
Rapid Traverse Rates (X / Z) 709 / 945 IPM
X-Axis Travel 9.1"
Z-Axis Travel 20.5"
C-Axis Index .001 Degrees
Turret Index (Single Step) 1 Second
Machine Dimensions (L x W x H) 88.8" x 70.2" x 71.6"
Machine Weight 9020 lbs.
Max Turning Diameter 16.9"
Tailstock Taper M #4

Product Features

MORIC MSC-518 (Fanuc 18T) CNC Control
9" Monochrome CRT
C-Axis Live Tooling
Tow-Along Tailstock
Collet Chuck
Removable Tool Presetter
Turbo Chip Conveyor
Torit Dryflo Mist Collector
Auto Front Door
(2) Face Live Holders
(3) Turning Holders
(1) Boring Bar Holder
(3) OD Wedge Blocks
Manufacture Date May 1996
