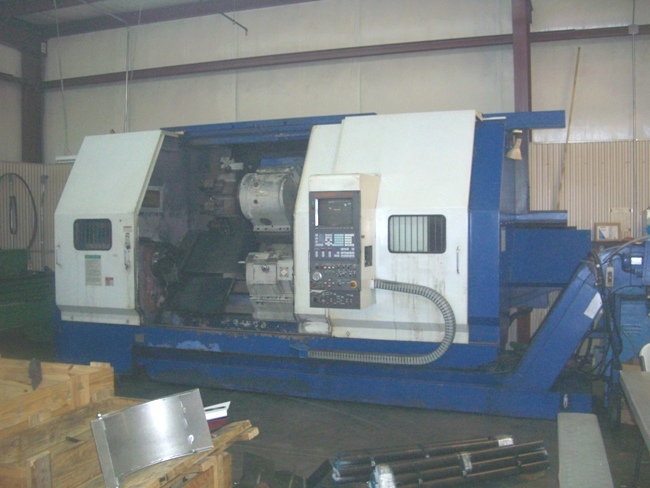

1996 MAZAK SLANT TURN 50N / 2000

T-Plus, 3.5" Bar, 16" Chk, 26" Max Dia, 81" Centers, 50HP, Tail, Steady Rest, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 16"
  • Max Diameter Bar Capacity 3.5"
  • Max Swing Over Bed / Carriage 31.7" / 22"
  • Spindle Motor 50 / 40 HP
  • Spindle Speed 4 - 1600 RPM
  • Spindle Nose A2-11
  • Spindle Bore 4"
  • Tools 15 (10 OD / 15 ID)
  • Rapid Traverse Rates (X / Z) 472 / 630 IPM
  • X-Axis Travel 22.64"
  • Z-Axis Travel 82"
  • Machine Dimensions (L x W x H) 259.8" x 104.9" x 107.4"
  • Machine Weight 24,000 lbs.
  • Distance Between Centers 81"
  • Max Turning Diameter 26"
  • Spindle Torque 1988 ft. lbs.
  • Tailstock Taper MT #5

Product Features

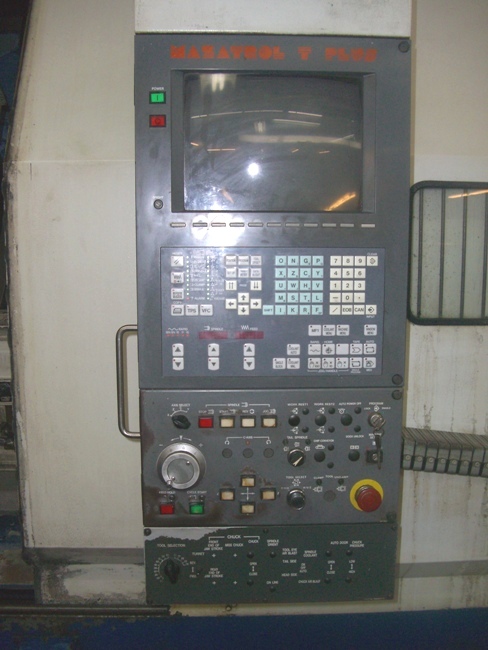

  • MAZATROL T-PLUS CNC CONTROL
  • 14" Color CRT
  • Conversational Programming
  • Graphic Display

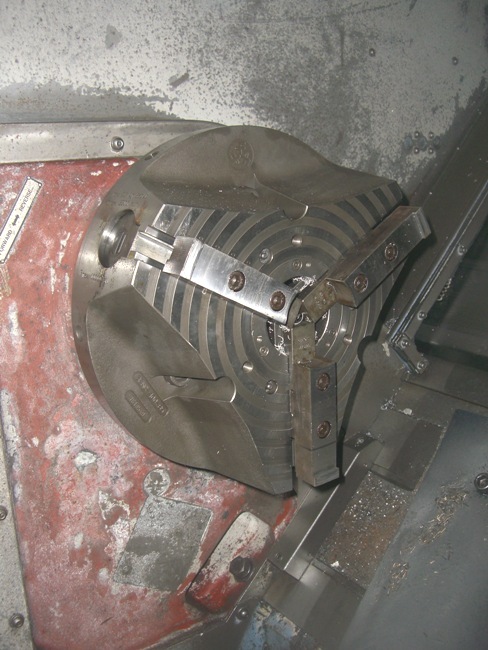

  • 16" Quick Change Hydraulic Chuck
  • 81" Cutting Length
  • Programmable Tailstock
  • Manual Steady Rest

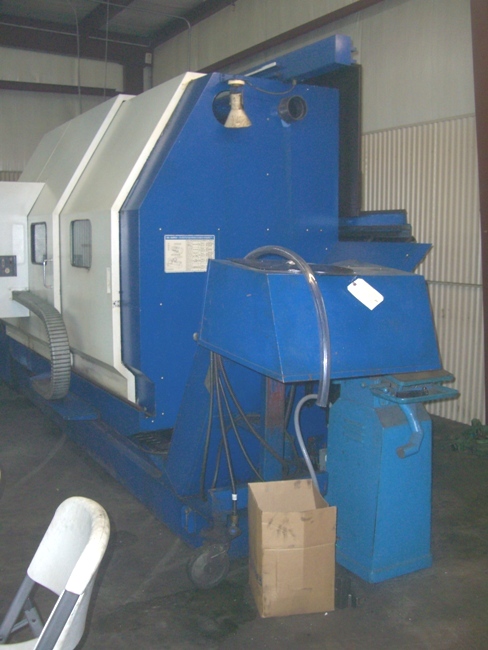

  • Chip Conveyor (Side Exit)

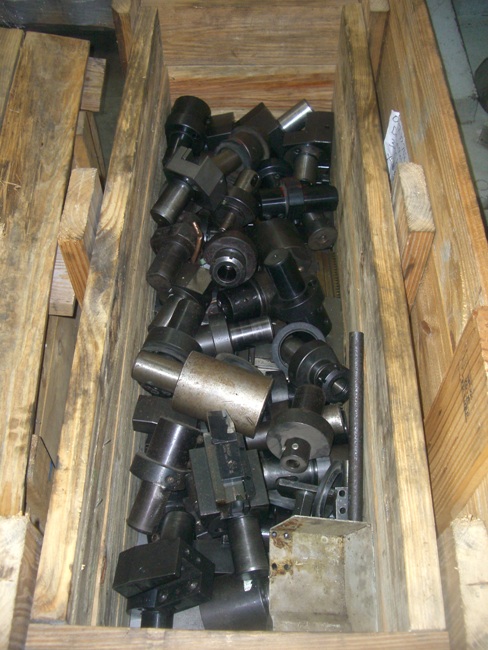

  • Approx. (50) Sets of Soft Jaws
  • Three Gear Range Headstock
  • Slant Bed Box Way Construction
  • Mfg Date May 1996
