1995 MAZAK SUPER QUICK TURN 15M MARK II

Mazatrol T-Plus, 2" Bar, 8" Chuck, 12 Tools, 25 HP, 4000 RPM, Live Tooling, Barfeed, Parts Catcher, Tool Eye, Tailstock
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed / Carriage 20.9" / 15.74"
  • Max Machining Length 20.78"
  • Spindle Motor 25 / 20 HP AC
  • Spindle Speed 35 - 5000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.4"
  • Tools 12 (Live or Turning)
  • Milling Motor 5 HP AC
  • Milling Speed 120 - 3000 RPM
  • Rapid Traverse Rates 1180 IPM
  • X-Axis Travel 7.12"
  • Z-Axis Travel 22.75"
  • C-Axis Index .001 Degrees
  • Turret Index (Single Step) 1.6 Seconds
  • Machine Dimensions (L x W x H) 120.4" x 63.4" x 80.3"
  • Machine Weight 13,000 lbs.
  • Max Turning Diameter 11.75"
  • Spindle Torque 246 ft. lbs.
  • Tailstock Taper MT#5

Product Features

  • MAZATROL T-PLUS CNC CONTROL
  • 14" Color CRT
  • C-Axis Live Tooling Capability
  • Conversational Programming
  • Color Graphic Display
  • Collet Chuck
  • Programmable Tool Eye
  • Auto Parts Catcher
  • Programmable Tailstock Body & Quill

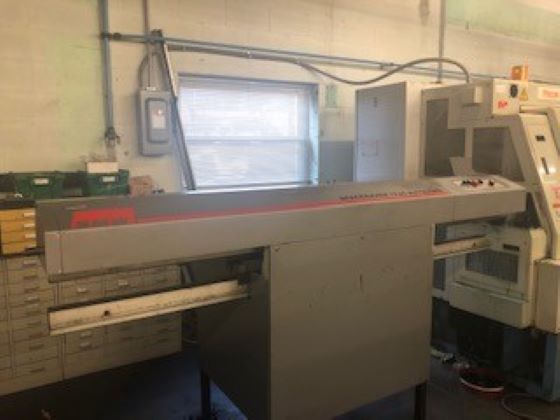

  • SMW SpaceSaver 12.65 Short Magazine Barfeed
  • (1) V-Type Mill Holder
  • (2) H-Type Mill Holders
  • (5) Boring Bar Holders
  • (5) Turning Holders
