< Back to Lathes
Special Item

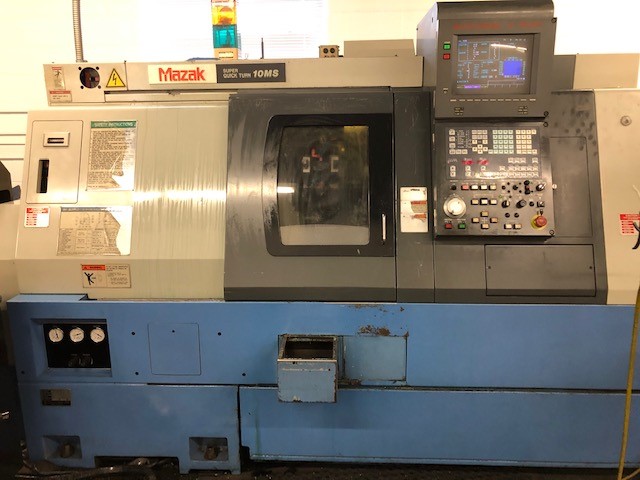

1995 MAZAK SUPER QUICK TURN 10MS

T-Plus, 1.65"" Bar, 6" Chuck, 6000 RPM, 12 Tools, 15 HP, Live Tooling, Sub Spindle, Barfeed, Parts Catcher, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 6"
  • Max Diameter Bar Capacity 1.65"
  • Spindle Speed 35 - 6000 RPM
  • Spindle Nose A2-5
  • Spindle Bore 2.04"
  • Tools 12 (All Live)
  • Milling Motor 3 HP AC
  • Milling Speed 120 - 3000 RPM
  • Sub Spindle Chuck 5"
  • Sub Spindle Motor 7.5 HP AC
  • Sub Spindle Speed 6000 RPM
  • Rapid Traverse Rates 1181 IPM
  • X-Axis Travel 6.3"
  • Z-Axis Travel 17.93"
  • C-Axis Index .001 Degrees
  • Turret Index (Single / Full Step) 0.4 / 1.2 Seconds
  • Machine Weight 8400 lbs.
  • Distance Between Spindles 17.9"
  • Main Motor 15 / 10 HP AC
  • Max Turning Diameter 17.125"

Product Features

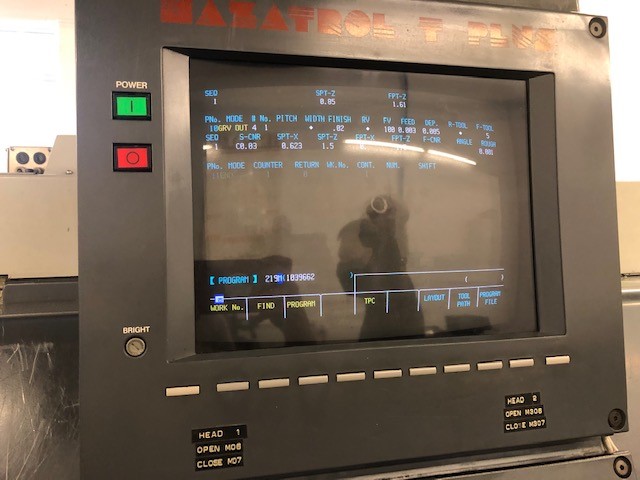

  • MAZATROL T-PLUS CNC CONTROL
  • 14" Color CRT
  • Conversational Programming
  • Color Graphic Display
  • Collet Chuck on Main Spindle
  • C-Axis Live Tooling Capability
  • Programmable Sub Spindle with 5 Degree Index
  • LNS Quick Load Short Magazine Barfeed
  • Auto Parts Catcher
  • Programmable Tool Eye
  • Jorgensen Chip Conveyor (Side Exit)
  • (1) V-Type Mill Holder
  • (1) H-Type Mill Holder
  • (5) Boring Bar Holders
  • (5) Turning Holders
