Special Item

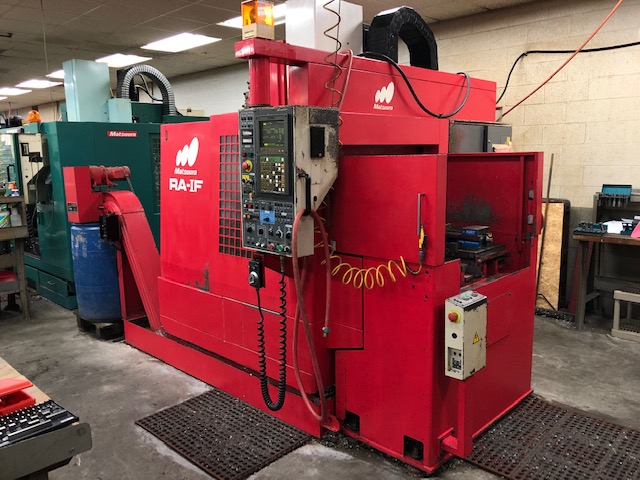

1995 MATSUURA RA-1F

Yasnac J300, 22.16.18", 15000 RPM, 20 SMTC, 7.5 HP, BT 40, Auto Two Pallet Changer, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 20"
  • Y-Axis 15.7"
  • Z-Axis 18.10"
  • Table Size 23.6" x 14.9" (2)
  • Spindle Speed 15,000 RPM
  • Spindle Taper BT 40
  • Spindle Motor 7.5 / 5 HP
  • Tools 20
  • Table Load Capacity 550 lbs.
  • Rapid Traverse Rates (X & Y / Z) 1181 / 945 IPM
  • Max Tool Diameter 3.15" / 5.9"
  • Max Tool Length 11.8"
  • Max Tool Weight 13.2 lbs.
  • Machine Weight 8800 lbs.
  • Pallet Change Time 9.0 Seconds
  • Spindle Nose to Table Top 5.9" - 24"
  • Tool Change Time (T- T / C - C) 2 / 5 Seconds

Product Features

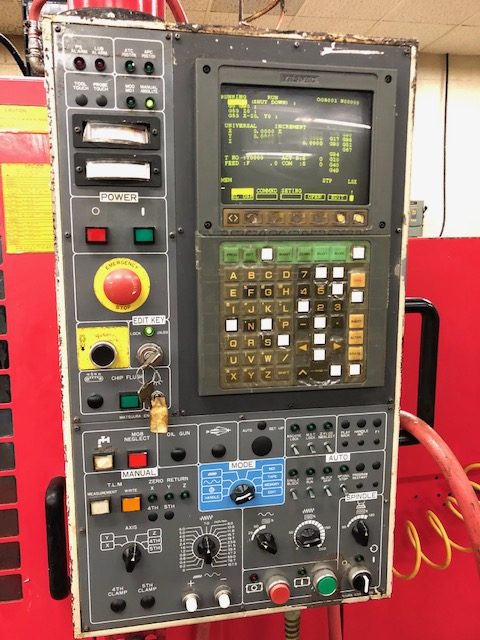

  • YASNAC i80B CNC Control
  • 9" Monochrome CRT
  • Graphic Display

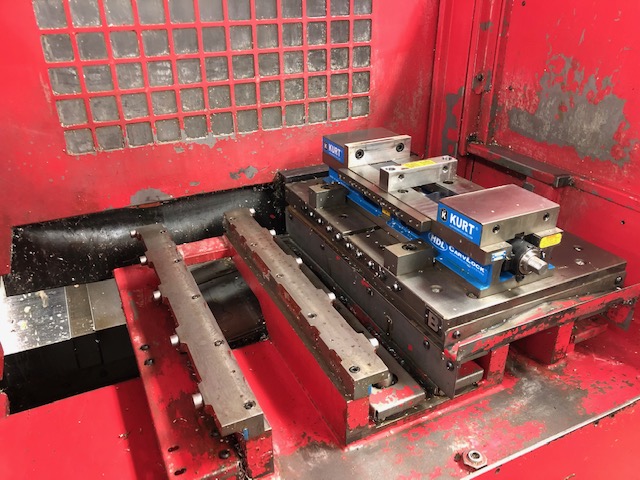

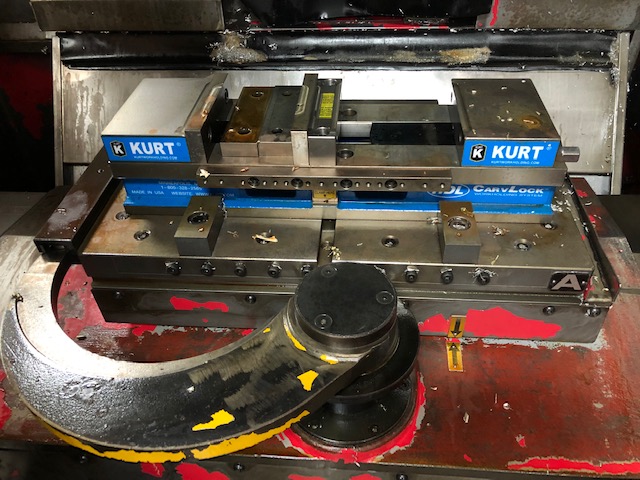

  • Auto Two Pallet Changer
  • 15000 RPM Spindle Speed

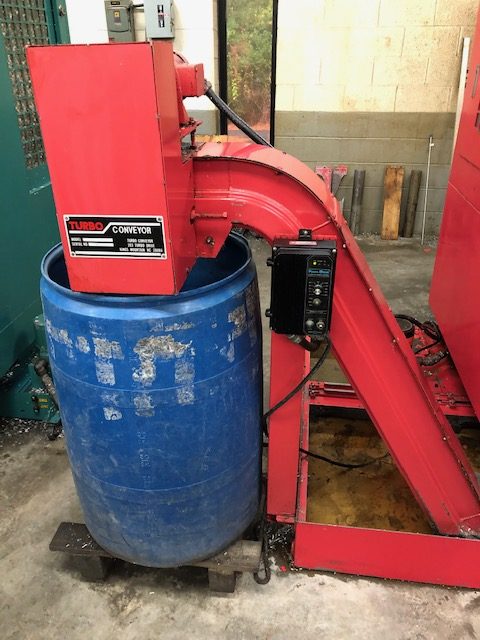

  • Turbo Chip Conveyor (Front Left Exit)
  • 20 Position Side Mount Tool Changer
  • Rigid Tapping
  • Remote Jog Handle
  • Yellow Operation Completion Light
  • Remote Jog Handle
  • Manufacture Date April 1995
  • 24,541 Power On Hours
