Special Item

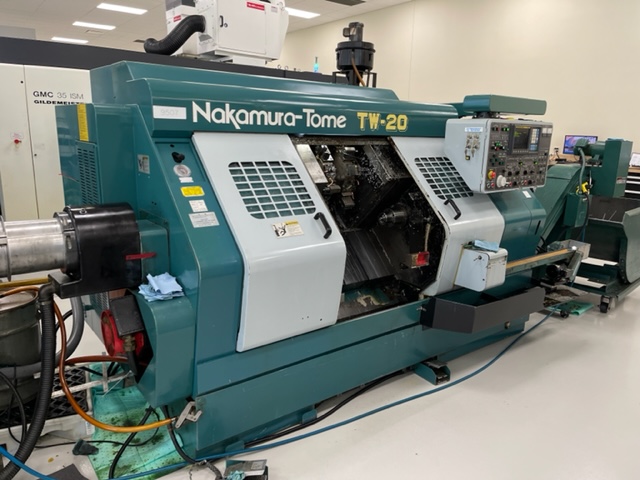

1994 NAKAMURA TOME TW-20MM
Fanuc 0TT, 2" Bar, 8" Chucks, (2) 12 Tools, 5000 RPM, 10 HP, Twin Turrets, Live Tooling, Sub Spindle, Barfeed, Parts Catcher, Exit Conveyor
Talk to a representative today!
(803) 548-8000
(803) 548-8000
Product Details
-
Chuck Size 8" (2)
-
Max Diameter Bar Capacity (Left / Right) 2" / 1.65"
-
Max Swing Over Bed 10.63"
-
Max Machining Length 7.87"
-
Spindle Motor (Left / Right) 10 / 7.5 HP
-
Spindle Speed 50 - 5000 RPM
-
Spindle Bore (Left / Right) 2.44" / 2.05"
-
Tools 12 x 2 (All Live)
-
Milling Motor 5 HP
-
Milling Speed 3600 RPM
-
Rapid Traverse Rates (X / Z) 472 / 945 IPM
-
X-Axis Travel 6.89"
-
Z-Axis Travel (Left / Right) 9.45" / 26.77"
-
C-Axis Index (L & R) .001 Degrees
-
Machine Dimensions (L x D x H) 143" x 71" x 78"
-
Machine Weight 14,300 lbs.
-
Max Turning Diameter 6.5"
Product Features

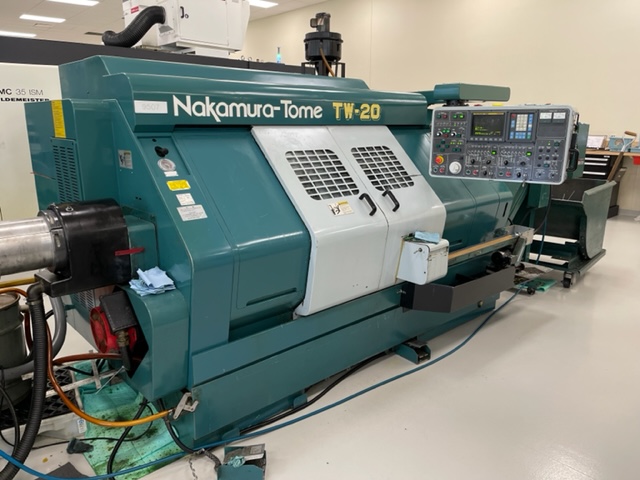

- FANUC 0TT CNC Control
- 9" Monochrome CRT

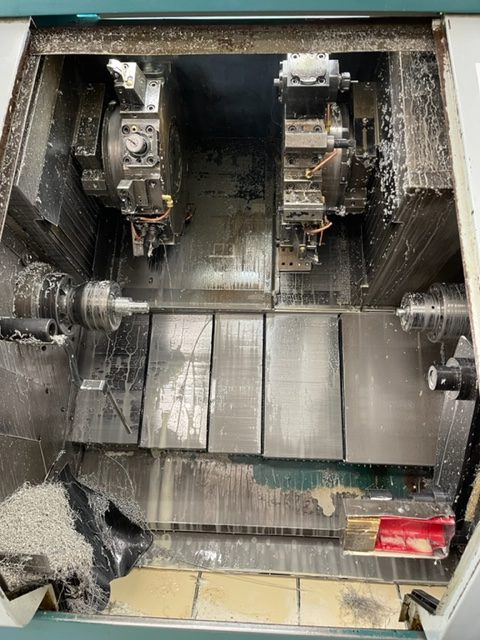

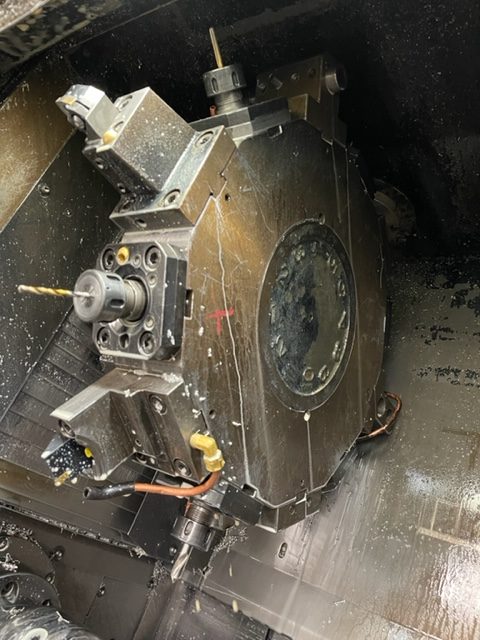

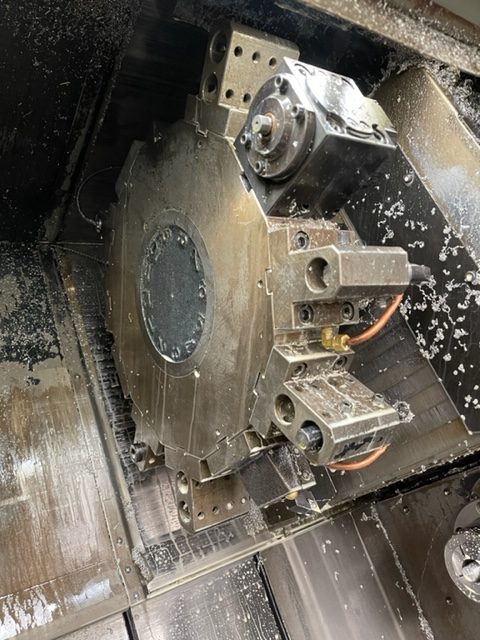

- Twin Upper Turrets with Live Tooling Capability
- Main & Sub Spindles with Full C-Axis Live Tooling Capability

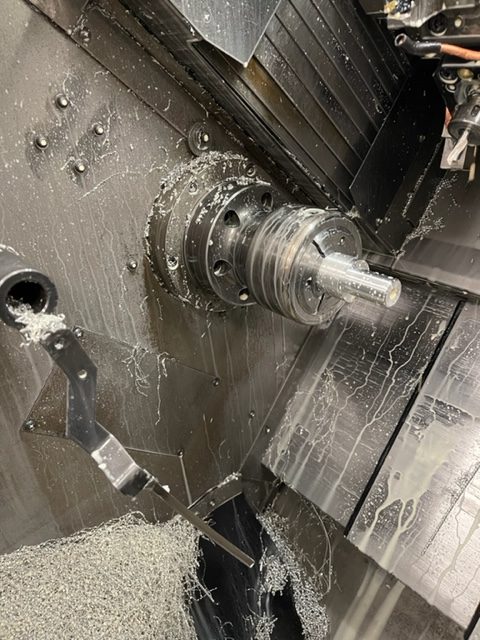

- ATS S20 Collet Chuck for Main Spindle

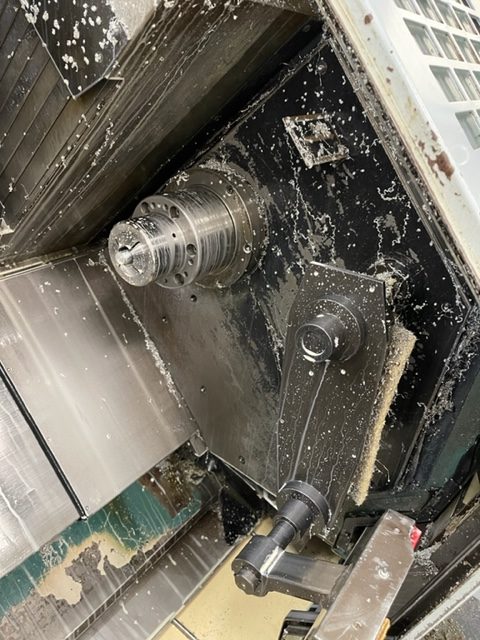

- Microcentric Collet Chuck on Sub Spindle
- 6" Hydraulic B-06 Chuck for Sub Spindle
- Main Spindle Cutoff Confirmation
- Auto Parts Catcher
- Work Exit Conveyor

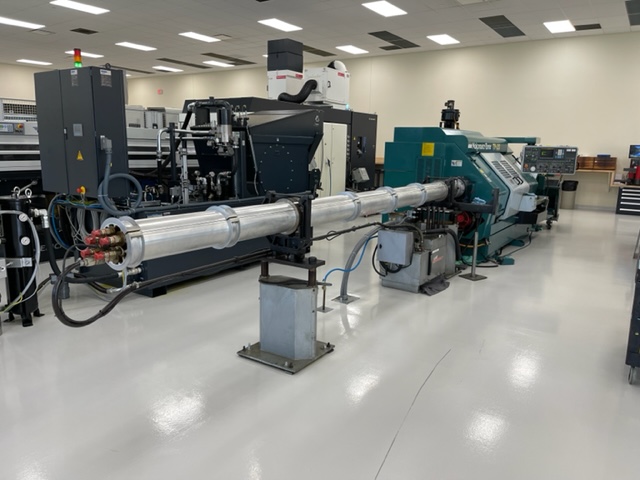

- LNS Super Hydrobar HYS-6.52 HS-5.2 Hydrodynamic 12 ft. Indexable Barrel Barfeed
- Turbo Chip Conveyor (Hinge Type Side Exit)
- (7) Face Live Holders
- (6) OD Live Holders
- (1) Fixed Angle Live Holder
- (19) Boring Bar Holders
- (1) Double Boring Bar Holder
- (26) Turning Holders
- (1) Cut Off Holder
- (1) Bar Stop
- (24) S20 Collets for Main Spindle
- (194) 16C Collets for Sub Spindle
- (1) Set of Aluminum Pie Jaws
- (24) Sets of Soft Jaws
- (6) Spindle Liners
- Filtermist Mist Collector
