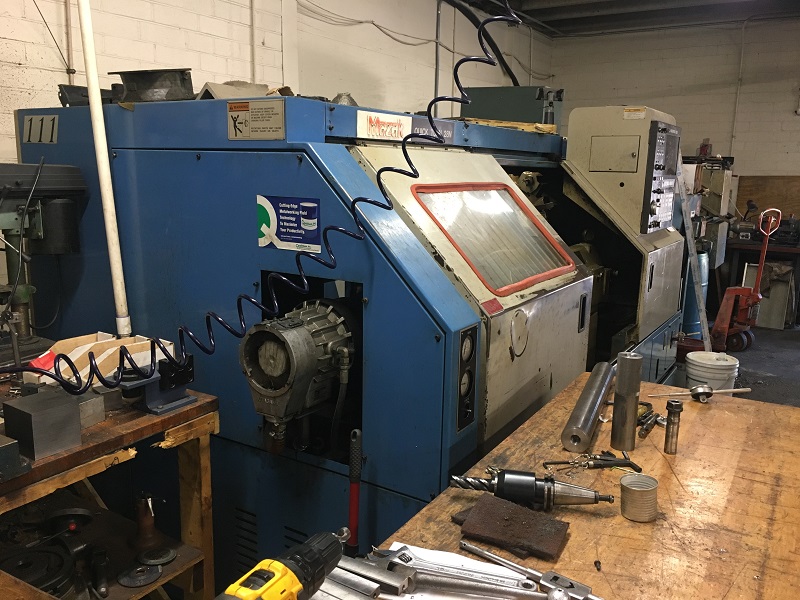

1994 MAZAK QUICK TURN 28N UNIVERSAL

MAZATROL T-32B, 10'' Chuck, 2.75'' Bar, 12.6'' Max Dia, 39.4'' Length, 3000 RPM, Tail, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 10"
  • Max Diameter Bar Capacity 2.75"
  • Max Swing Over Bed / Carriage 20.08" / 15.75"
  • Max Machining Length 39.4"
  • Spindle Motor 30 / 25 HP AC
  • Spindle Speed 30 - 3000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.15"
  • Tools 8 D / 16 P
  • Rapid Traverse Rates (X / Z) 709 / 945 IPM
  • X-Axis Travel 7.87"
  • Z-Axis Travel 40.16"
  • Turret Index (Single Step / Full) 0.6 / 1.8 Seconds
  • Machine Dimensions (L x W x H) 135.04" x 72.79" x 72.8"
  • Machine Weight 12,000 lbs.
  • Change Time 30 seconds
  • Max Turning Diameter 12.6"
  • Spindle Torque 318 ft. lbs.
  • Tailstock Taper MT#4

Product Features

  • MAZATROL T-32B CNC CONTROL
  • 12" Monochrome CRT
  • Conversational Programming
  • Graphic Display

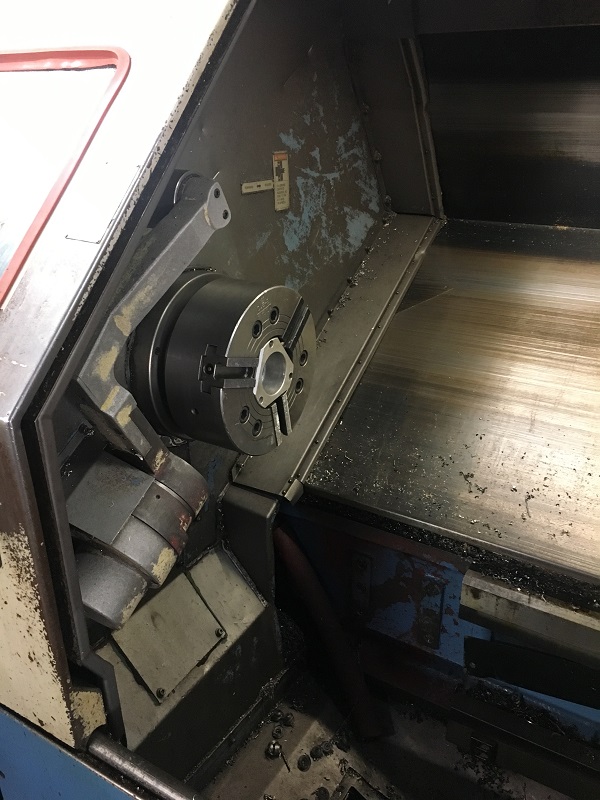

  • 10" Hydraulic 3-Jaw Chuck
  • Programmable Tool Eye
  • Programmable Tailstock Body & Quill
  • Jorgensen Chip Conveyor (Side Exit)
  • (4) Boring Bar Holders
  • (4) Turning Holders
  • Multi-Tap Transformer
