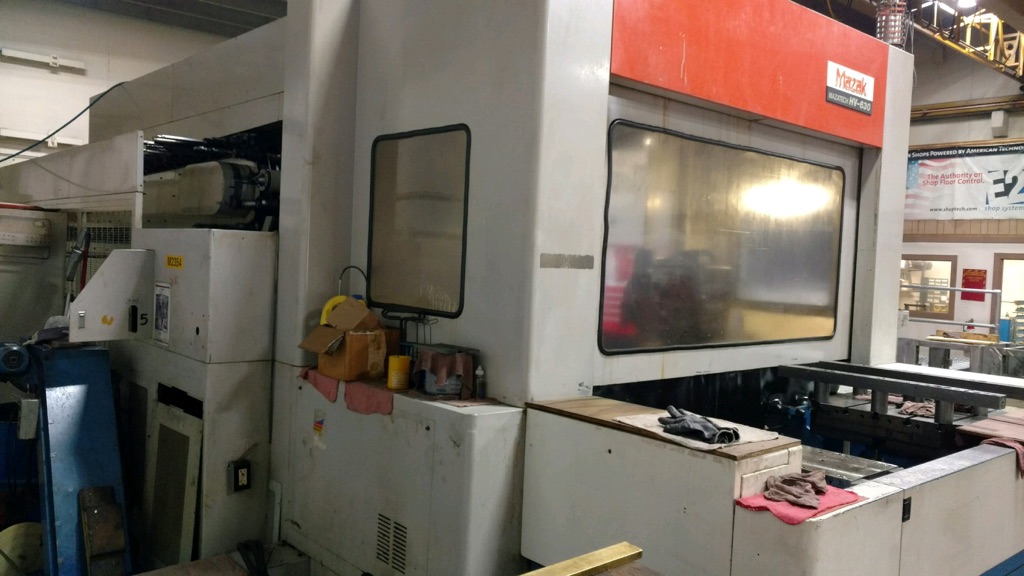

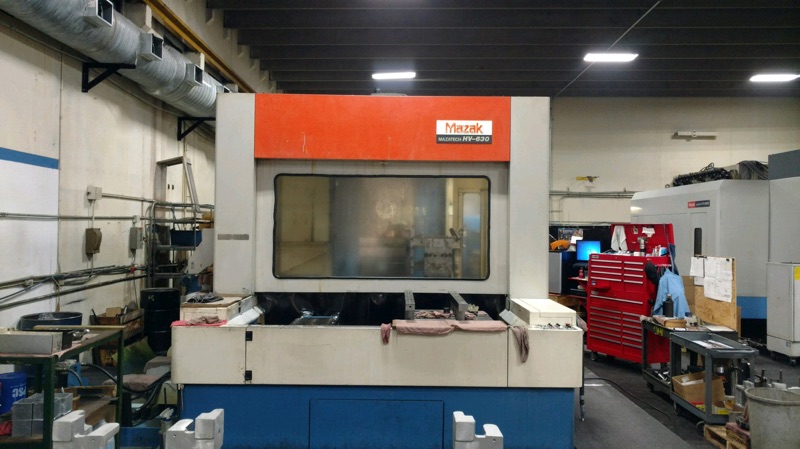

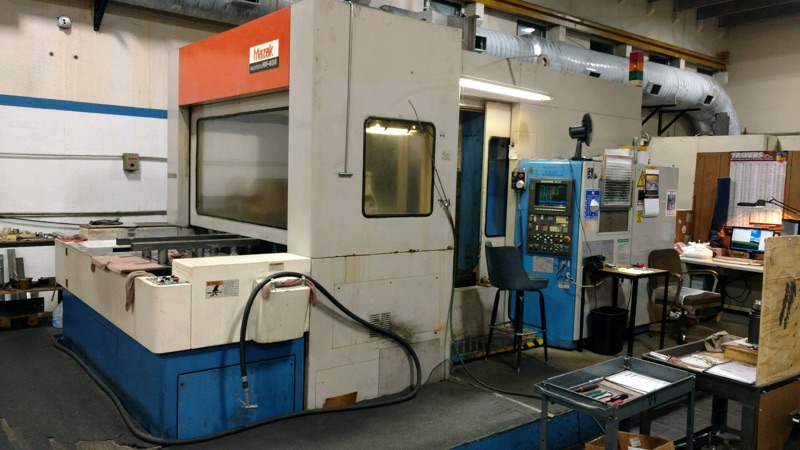

1994 MAZAK HV-630 5-AXIS

M-32, 24.8" Pallets, 39.31.41", 4000 RPM, 120 Tools, Cat 50, 30 HP, 5-Axis, ATLM, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

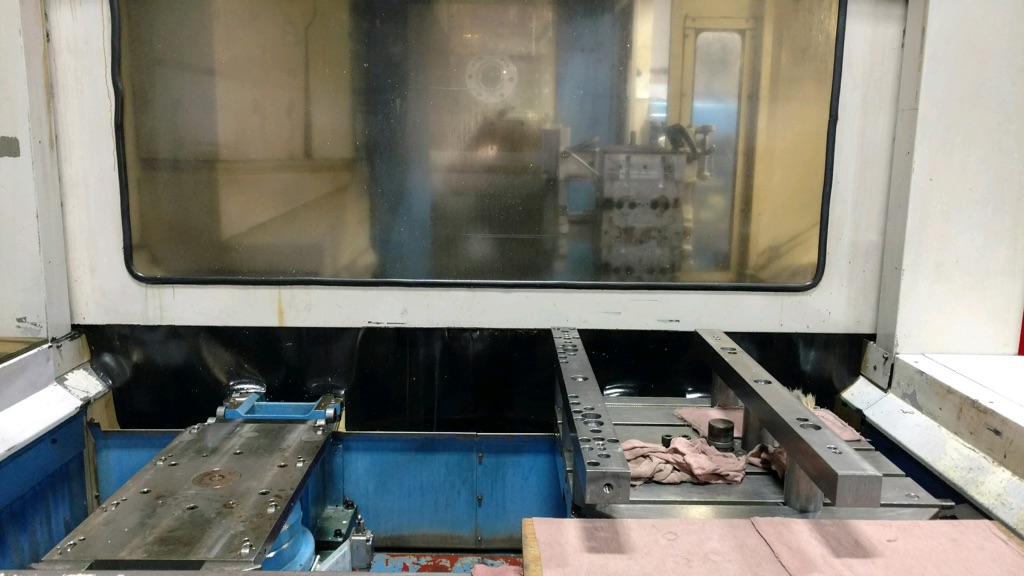

  • Pallet Size 24.8" (2)
  • X-Axis 39.4"
  • Y-Axis 31.5"
  • Z-Axis Travel 41.3"
  • Spindle Speed 4000 RPM
  • Spindle Taper Cat 50
  • Spindle Motor 30 / 25 HP
  • Tools 120
  • Rapid Traverse Rates 787 IPM
  • Max Tool Diameter 5.31" / 10.24"
  • Max Tool Length 19.7"
  • Max Tool Weight 44 lbs.
  • Max Workpiece Dia/Height 35.4" / 37.4"
  • Machine Weight 44,000
  • Spindle Torque 433 ft. lbs.
  • Table Load Capacity 2650 lbs.

Product Features

  • MAZATROL M-32A CNC Control
  • 14" Color CRT
  • Spindle Rotates from Horizontal to Vertical Position
  • 120 Tool Magazine
  • Auto Tool Length Measurement
  • Tool Life Management System
  • Niagara Flood Coolant
  • Chip Conveyor (Left Side Exit)
  • Three Color Tower Light
  • Remote Manual Pulse Generator
  • Manufacture Date January 1994
