Special Item

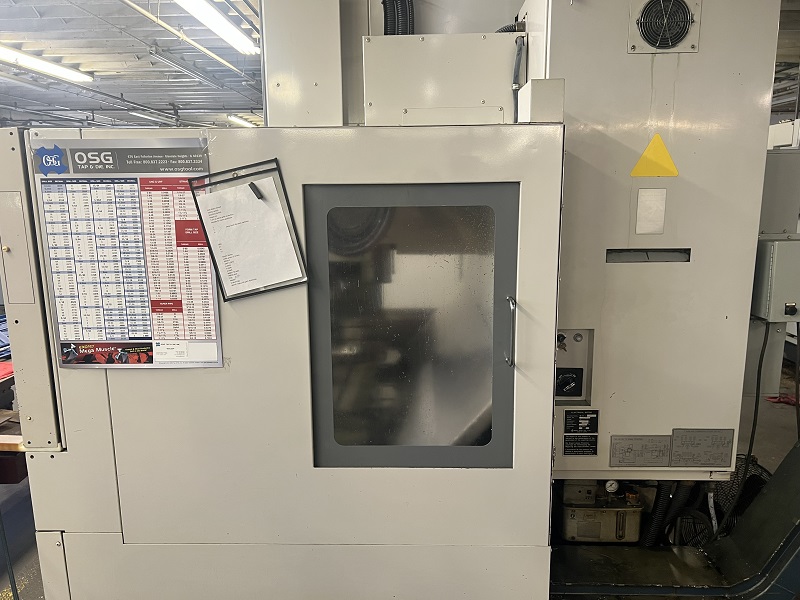

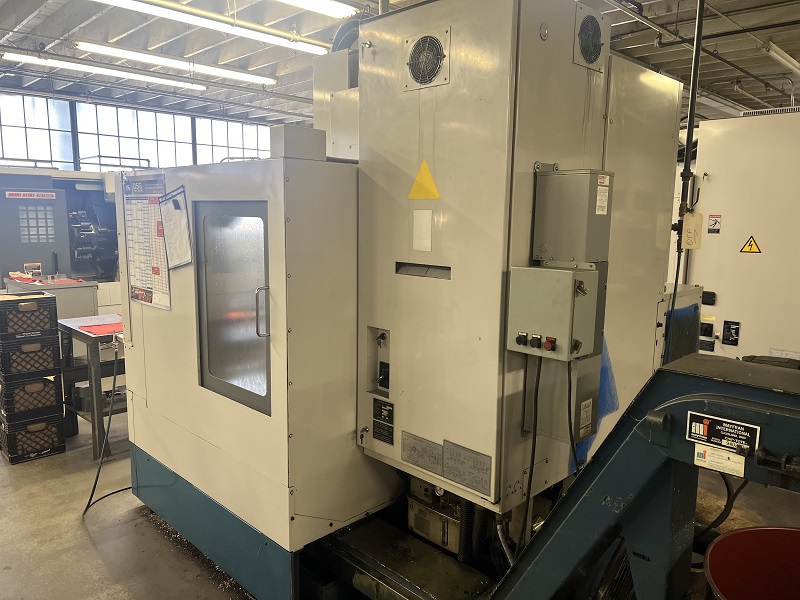

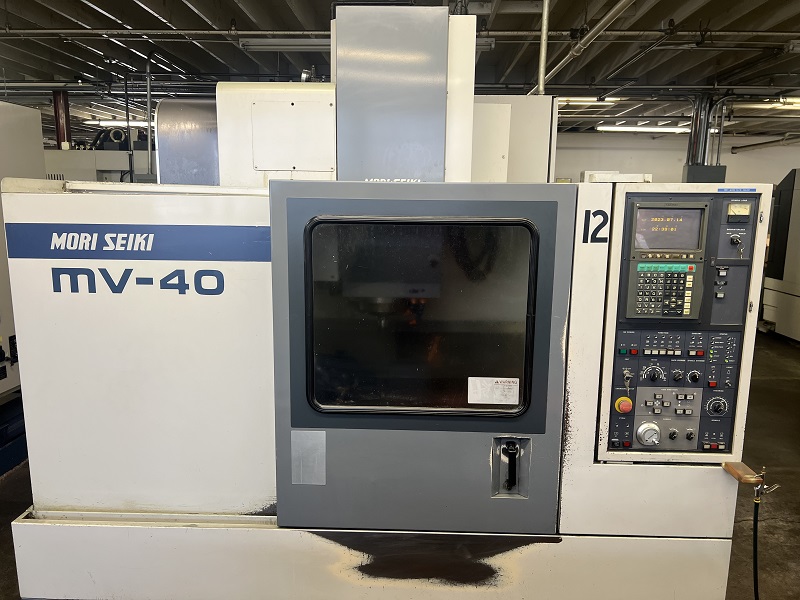

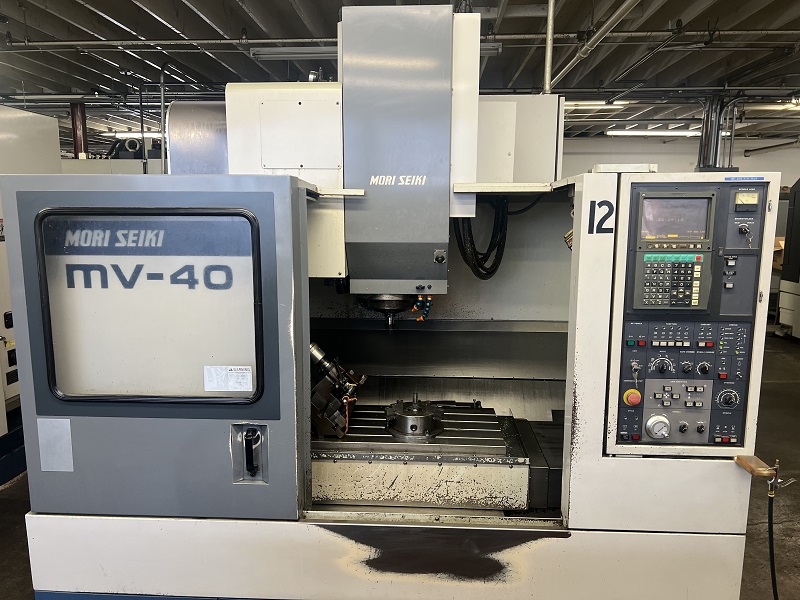

1992 MORI SEIKI MV-40B

Yasnac MX-3, 22.16.20", 8000 RPM, Cat 40, 10 HP, 20 SMTC, Rigid Tapping, Chip Conveyor, Chiller Unit
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 31.5"
  • Y-Axis 16.1"
  • Z-Axis 20.1"

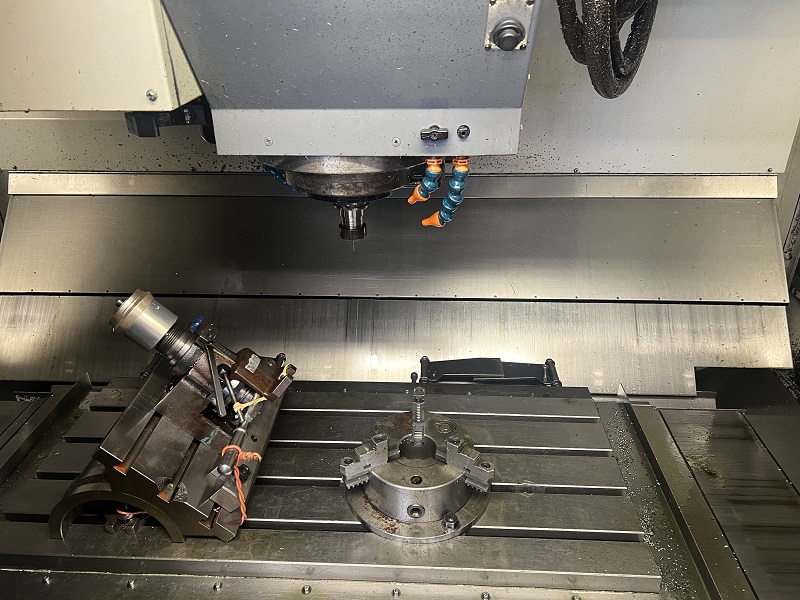

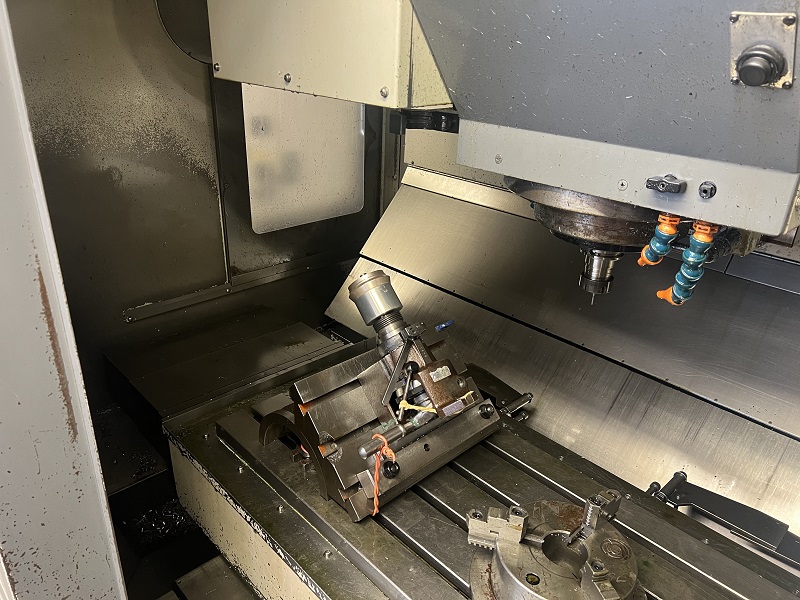

  • Table Size 43.3" x 17.7"
  • Spindle Speed 30 - 8000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 10 / 7.5 HP AC
  • Tools 20
  • Table Load Capacity 1540 lbs.
  • Rapid Traverse Rates (X & Y / Z) 787 / 590 IPM
  • Max Tool Diameter 3.1" / 4.9"
  • Max Tool Length 9.8"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x W x H) 97.6" x 88.6" x 109.1"
  • Machine Weight 13,000 lbs.
  • Spindle Nose to Table Top 5.9" - 26"
  • Tool Change Time (T - T / C - C) 1.5 / 5.2 Seconds

Product Features

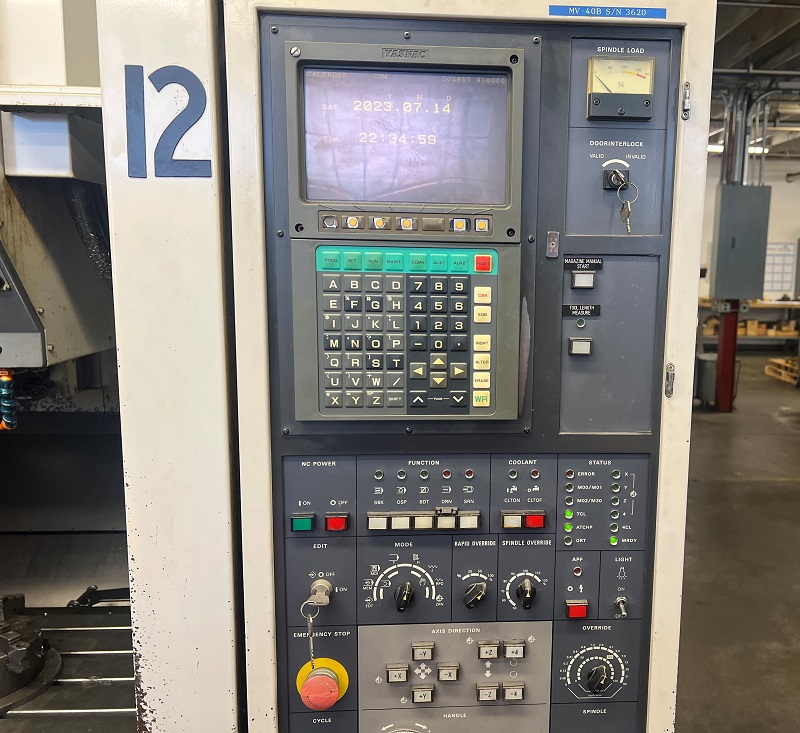

  • Yasnac MX-3 CNC Control

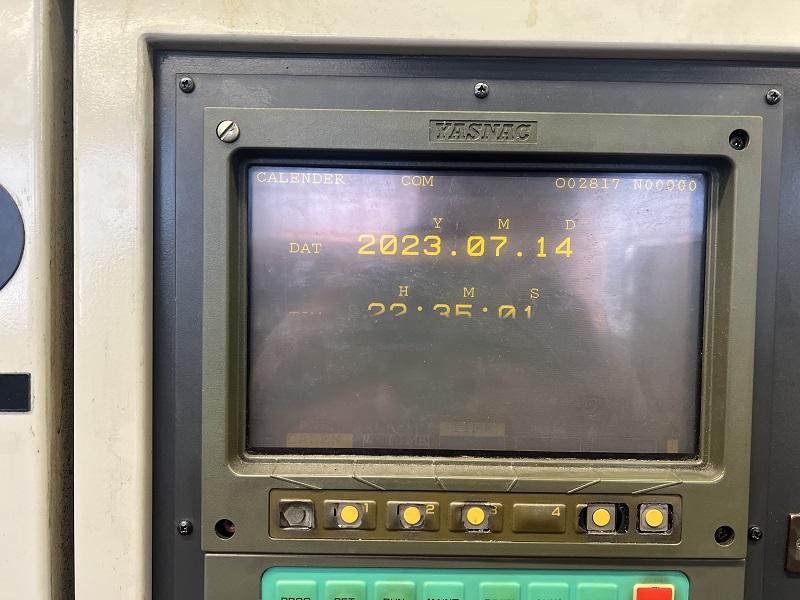

  • 9" Monochrome CRT
  • Rigid Tapping
  • Helical Interpolation
  • RS-232C Interface
  • Graphic Display
  • Chip Auger
  • Mayfran Chip Conveyor (Hinge Type Right Rear Exit)

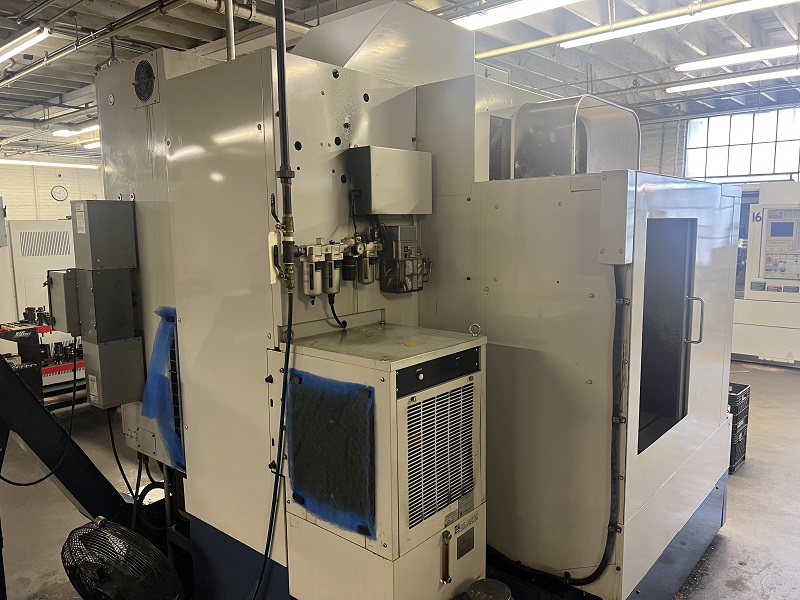

  • Spindle Chiller Unit
  • Heavy Duty Box Way Construction

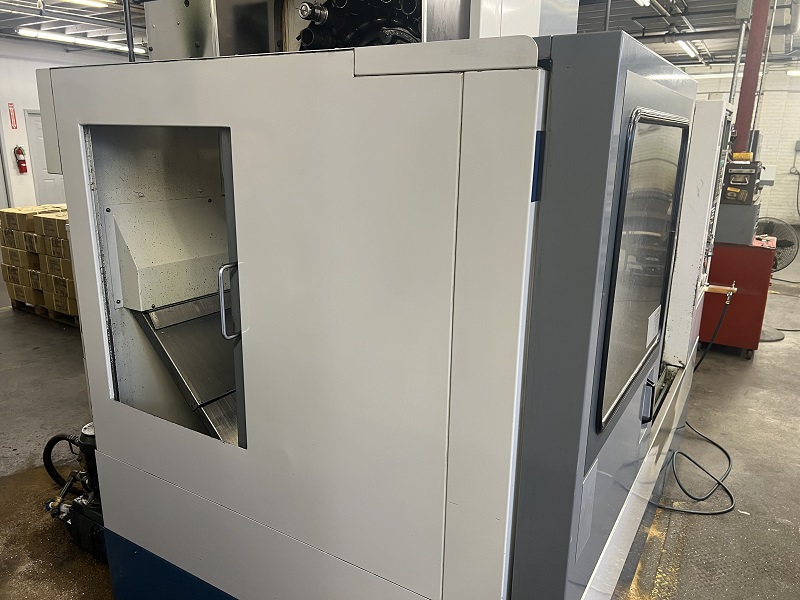

  • Full Enclosure
  • 9727 Power On Time
  • 795 Cycle Start Time
  • 1993 Cutting Time
