Special Item

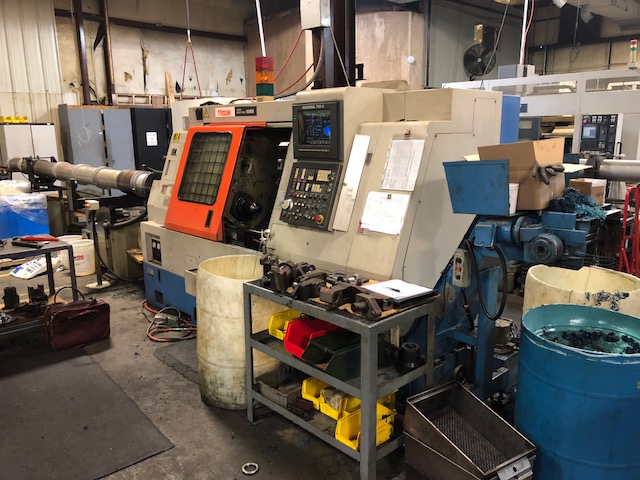

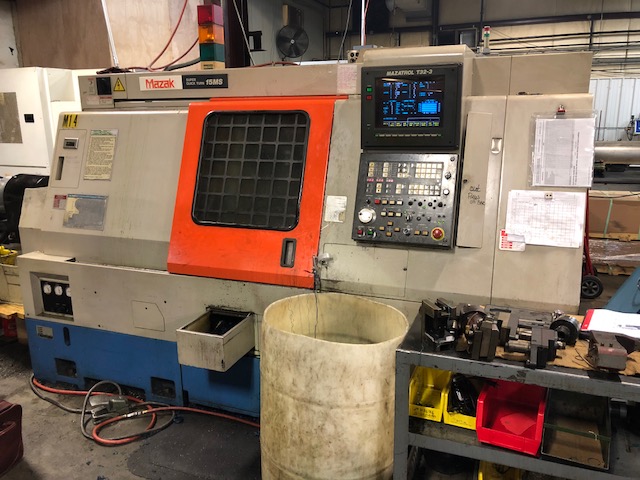

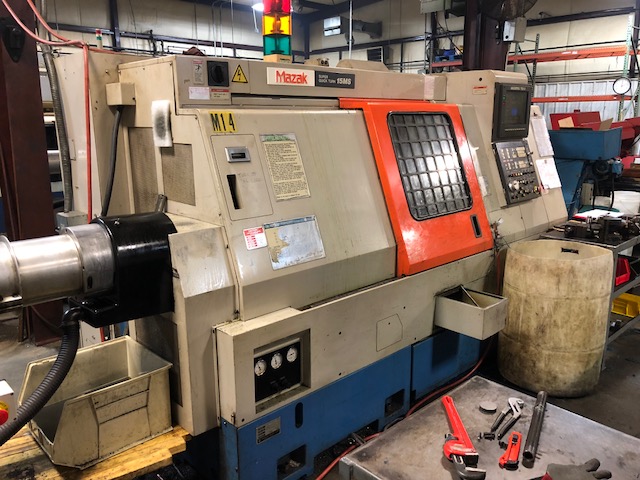

1992 MAZAK SUPER QUICK TURN 15MS

Mazatrol T-32-3, 2" Bar, 8" Chuck, 5000 RPM, 12 Tools, 25 HP, Live Tooling, Sub Spindle, Tool Eye, Chip Conveyor
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 8"
  • Max Diameter Bar Capacity 2"
  • Max Swing Over Bed / Carriage 20.9" / 15.74"
  • Max Machining Length 20.78"
  • Spindle Motor 25 / 20 HP AC
  • Spindle Speed 35 - 5000 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.4"

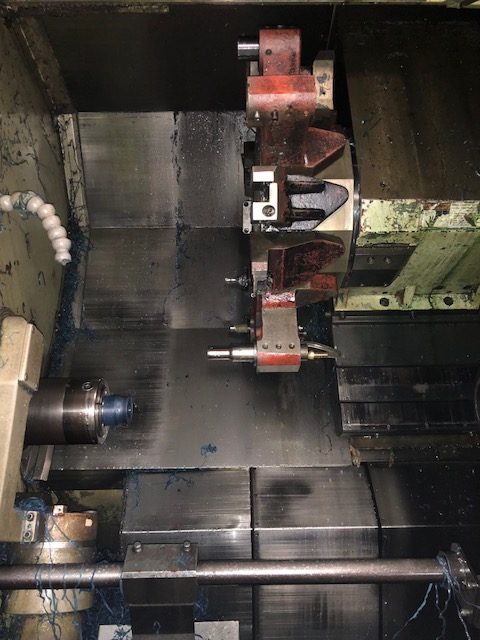

  • Tools 12 (All Live)
  • Milling Motor 5 HP
  • Milling Speed 30 - 3000 RPM
  • Sub Spindle Chuck Size 6"
  • Sub Spindle Index 5 Degrees
  • Sub Spindle Motor 10 / 7.5 HP AC
  • Sub Spindle Speed 100 - 5000 RPM
  • Rapid Traverse Rates 1180 IPM
  • X-Axis Travel 7.12"
  • Z-Axis Travel 22.75"
  • C-Axis Index .001 Degrees
  • Turret Index (Single Step / Full) 1.3 / 5 Seconds
  • Machine Dimensions (L x W x H) 121.9" x 63.4" x 80.3"
  • Machine Weight 11,000 lbs.
  • Machine Weight 9700 lbs.
  • Max Turning Diameter 11.75"
  • Tailstock Taper MT#4

Product Features

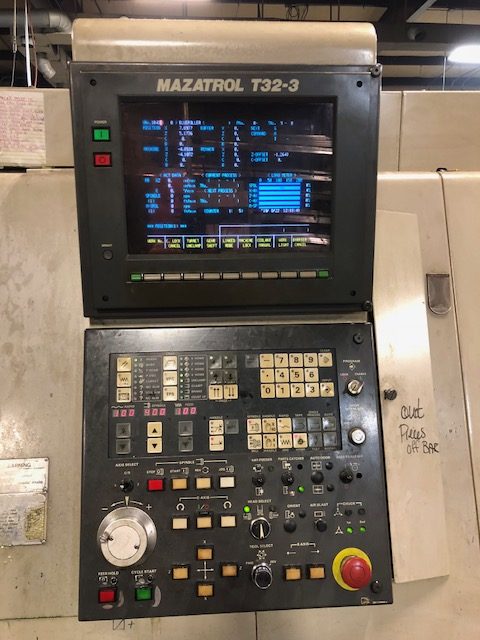

  • MAZATROL T32-3 CNC CONTROL
  • 14" Color CRT
  • Conversational Programming
  • EIA/ISO Input Function
  • Graphic Display
  • C-Axis Milling Capability
  • Programmable Sub Spindle with 5 Degree Index
  • Programmable Tool Eye

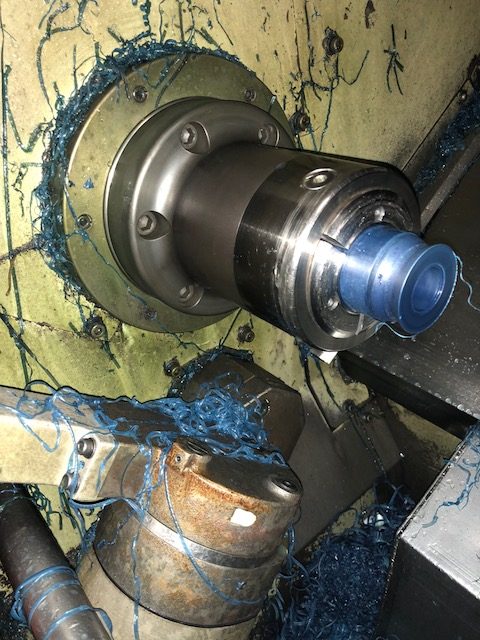

  • S20 Collet Chuck on Main Spindle
  • Positrol B42 Dead Length Collet Chuck for Sub Spindle

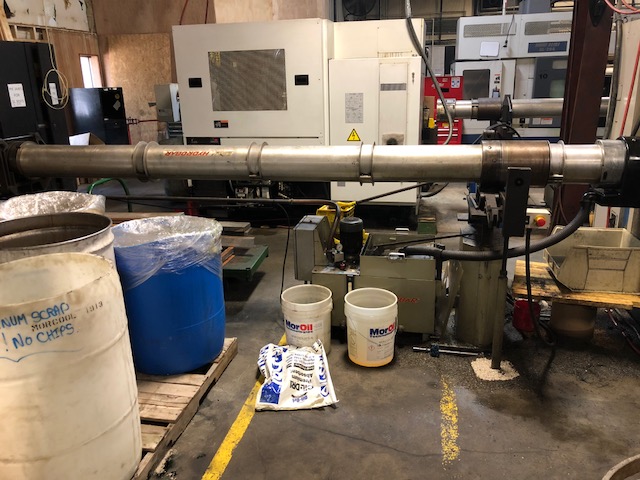

  • LNS Super Hydrobar 6.65HS-5.2 Hydrodynamic 12 ft. Indexable Barrel Barfeed
  • Chip Conveyor (Side Exit)
  • Auto Parts Catcher
  • Three Color Tower Light
  • (5) OD Live Holders
  • (7) Boring Bar Holders
  • (4) Turning Holders
  • (3) Tandem Turning Holders
  • Mfg Date February 1992
