1991 FADAL VMC-4020HT

Fadal 88HS, 40.20.20", 10000 RPM, Cat 40, 15 HP, 21 Tools, Box Way Construction
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 40"
  • Y-Axis 20"
  • Z-Axis 28"
  • Table Size 47.94" x 20"
  • Spindle Speed 75 - 10
  • Spindle Taper BT 40
  • Spindle Motor 15 HP
  • Tools 21
  • Table Load Capacity 1500 lbs.
  • Rapid Traverse Rates (X&Y/Z) 700 / 600 IPM
  • Rapid Traverse Rates 400 IPM
  • Max Tool Diameter 3" / 6"
  • Max Tool Length 15"
  • Max Tool Weight 15 lbs.
  • Machine Dimensions (L x W x H) 116" x 87" x 95"
  • Machine Weight 10,000 lbs.
  • Spindle Nose to Table Top 4" - 24"
  • Spindle Torque 160 ft. lbs.

Product Features

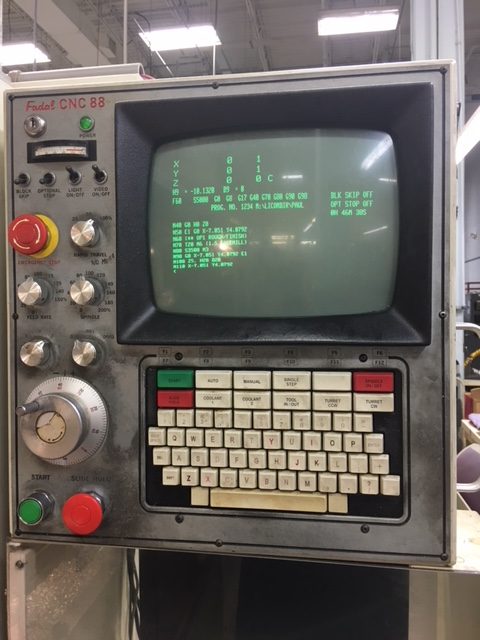

  • FADAL 88HS CNC Control
  • 12" Monochrome CRT
  • 21 Tool Magazine
  • Heavy Duty Box Way Construction
