1990 MORI SEIKI SL-35A / 1500

Fanuc 0T, 2.75" Bar, 12" Chuck, 16.5" Max Dia, 60.2" Length, 12 Tools, Tail, Chip
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 12"
  • Max Diameter Bar Capacity 2.75"
  • Max Swing Over Bed / Carriage 23.6" / 16.7"
  • Max Machining Length 60.2"
  • Spindle Motor 30 / 24.8 HP AC
  • Spindle Speed 9 - 2500 RPM
  • Spindle Nose A2-8
  • Spindle Bore 4.1"

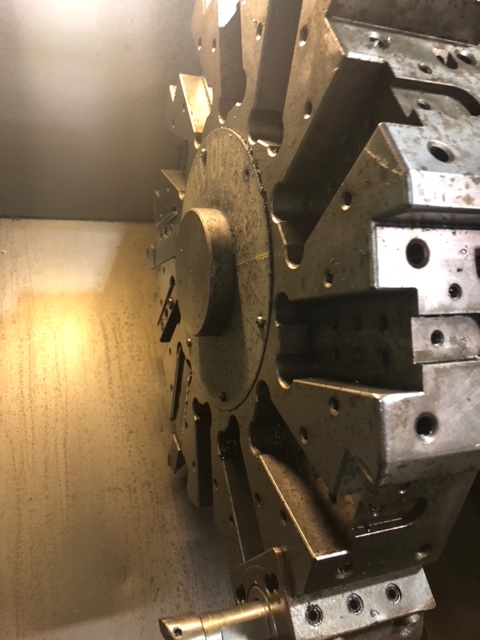

  • Tools 12
  • Rapid Traverse Rates (X / Z) 472 / 590 IPM
  • X-Axis Travel 9.4"
  • Z-Axis Travel 63.2"
  • Machine Dimensions (L x W x H) 186" x 72.6" x 83.9"
  • Machine Weight 19,000 lbs.
  • Distance Between Centers 64.6"
  • Max Turning Diameter 16.5"
  • Spindle Torque 516 ft. lbs.
  • Tailstock Taper MT#4

Product Features

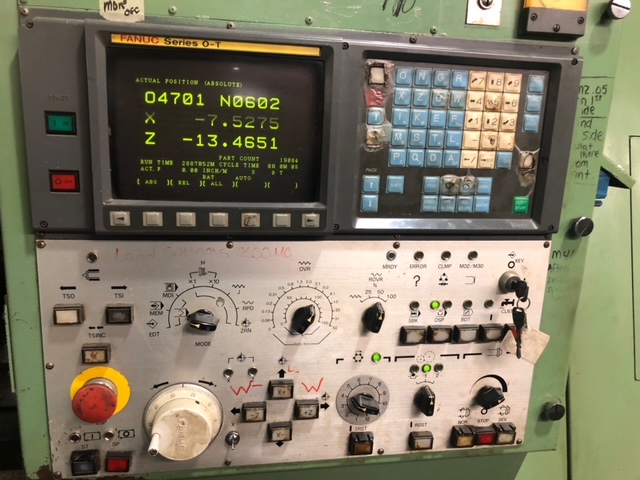

  • FANUC 0T CNC CONTROL
  • 9" Monochrome CRT

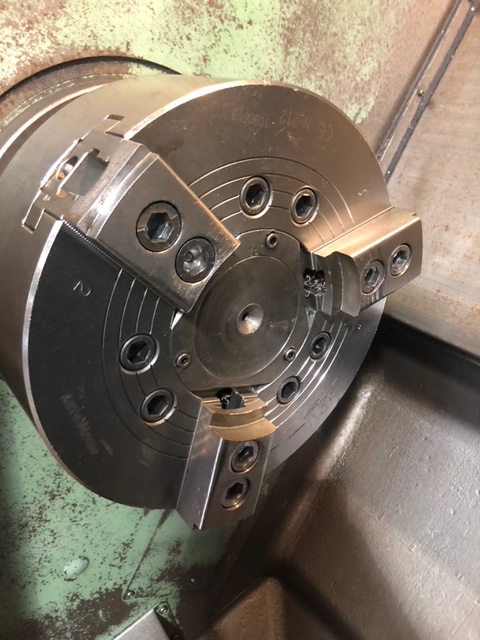

  • 12" Strong N212 Hydraulic 3-Jaw Chuck

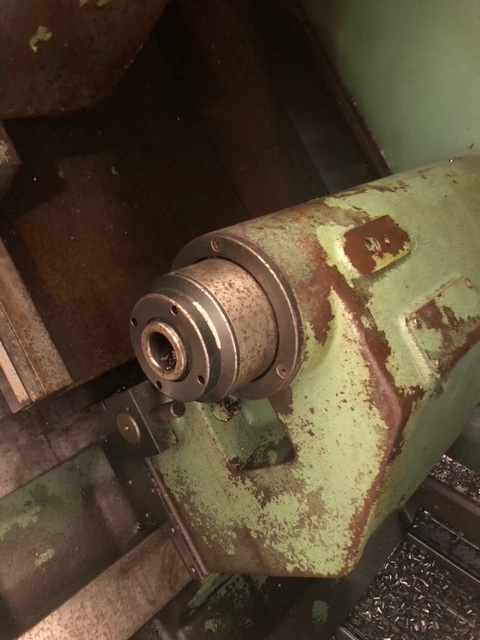

  • Tow-Along Tailstock
  • Turbo Chip Conveyor (Side Exit)
  • Two Gear Range Headstock
  • Slant Bed Box Way Construction
  • Mfg Date February 1990
