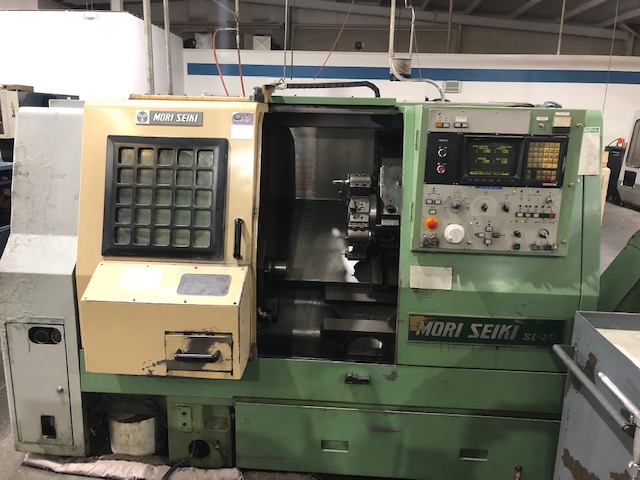

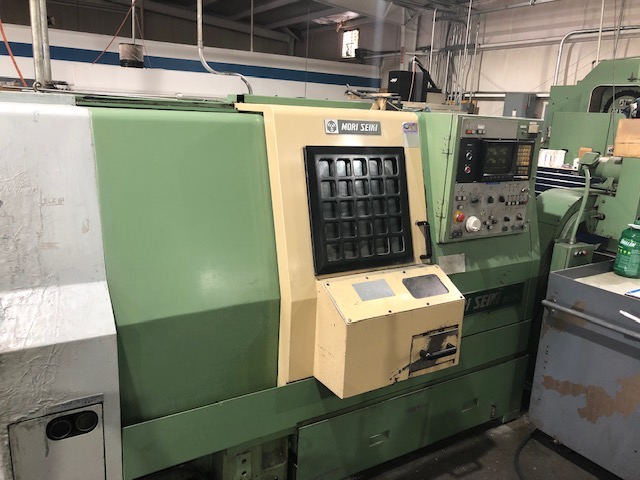

1990 MORI SEIKI SL-20

FANUC, 1.75" Bar, 8" Chk, 10 Tools, 3500 RPM, Tail,Chip, APC
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 16C
  • Chuck Size 8"
  • Max Diameter Bar Capacity 1.75"
  • Max Swing Over Bed / Carriage 17.71" / 11.81"
  • Max Machining Length 20.67"
  • Spindle Motor 15 HP
  • Spindle Speed 35 - 3500 RPM
  • Spindle Nose A2-6
  • Spindle Bore 2.2"

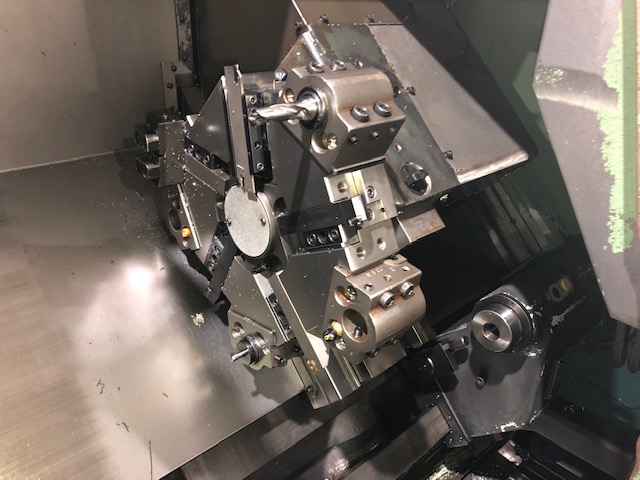

  • Tools 10
  • Rapid Traverse Rates (X / Z) 472 / 590 IPM
  • X-Axis Travel 5.31"
  • Z-Axis Travel 22.04"
  • Turret Index (Single Step) 0.7 Seconds
  • Machine Dimensions (L x W x H) 98.4" x 53.1" x 65"
  • Machine Weight 7270 lbs.
  • Max Turning Diameter 8.25"
  • Tailstock Taper MT#4

Product Features

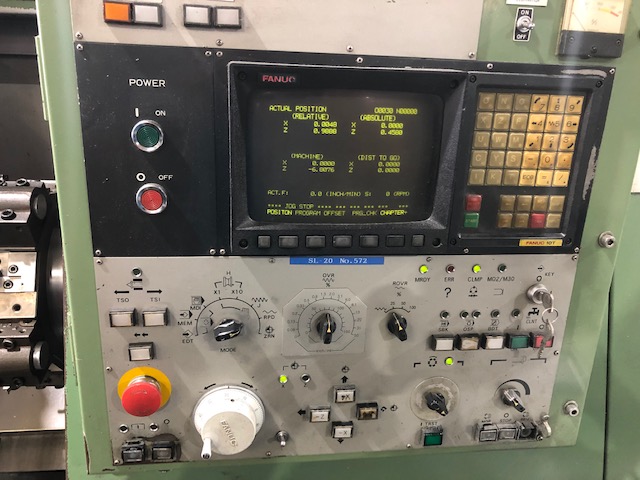

  • FANUC 10t CNC CONTROL
  • 9" Monochrome CRT

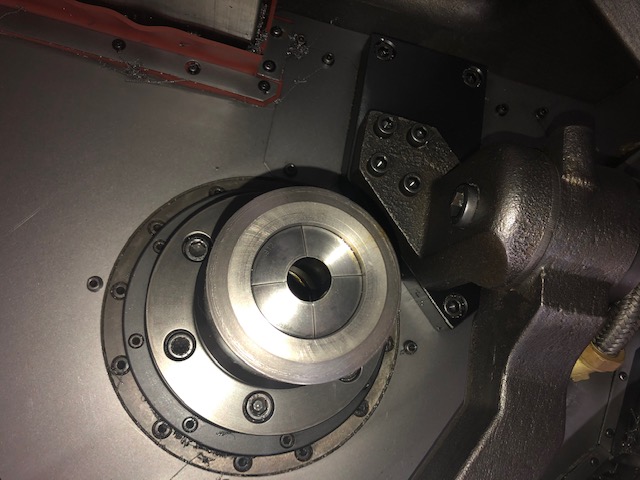

  • 8" Kitagawa Hydraulic Chuck
  • 16c Collet Chuck
  • Tool Presetter

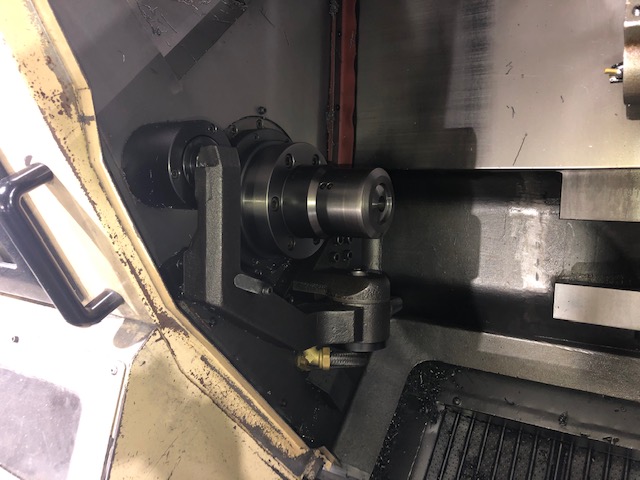

  • Tailstock
  • Automatic Parts Catcher

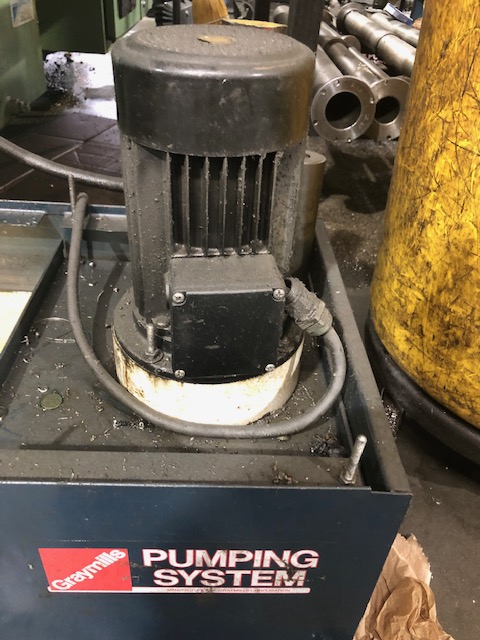

  • Graymills High Pressure Coolant System
  • Chip Conveyor
  • Slant Bed Box Way Construction
