Special Item

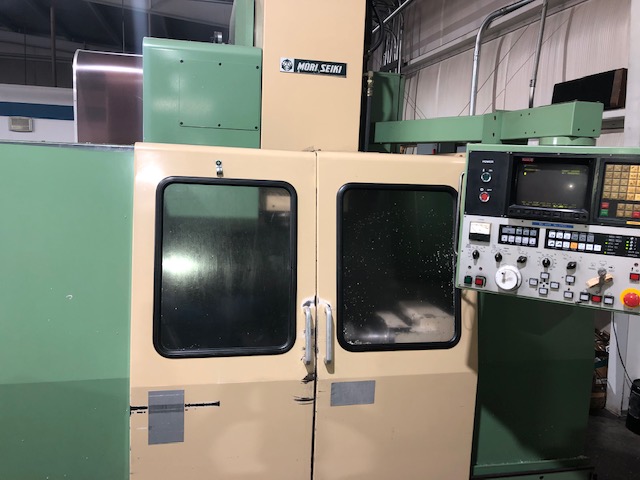

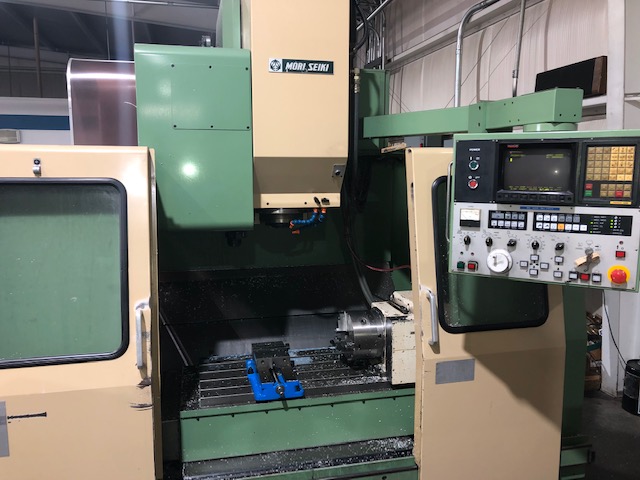

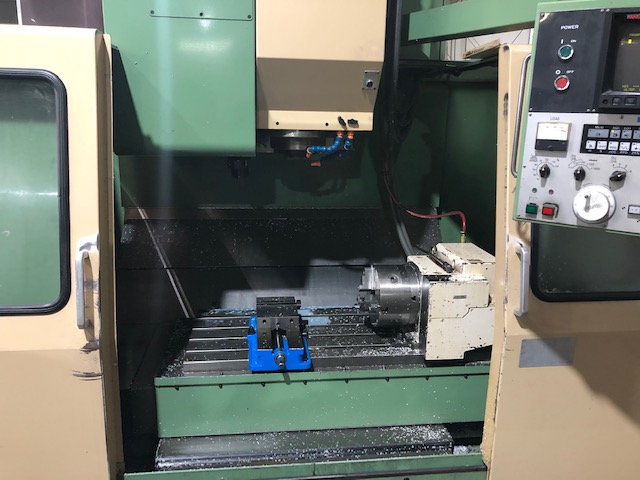

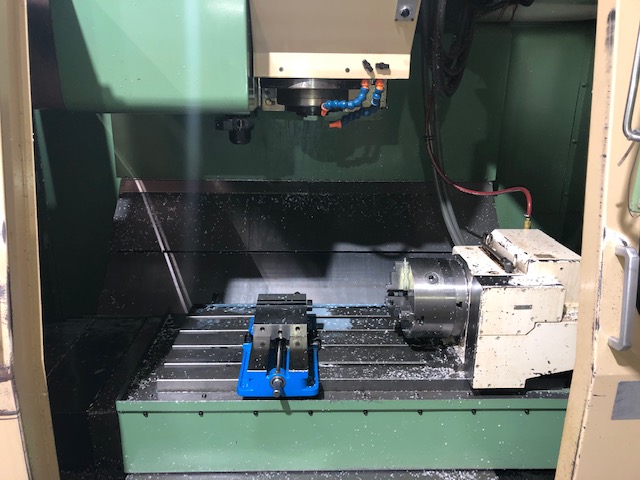

1989 MORI SEIKI MV-40B

FANUC 10m, 31.16.20", 8000 RPM, Cat 40, 10HP, 20 Tools, Chiller Unit, Box Ways, 4th Axis
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 31.5"
  • Y-Axis 16.1"
  • Z-Axis 20.1"
  • Table Size 43.3" x 17.7"
  • Spindle Speed 30 - 8000 RPM
  • Spindle Taper CAT 40
  • Spindle Motor 10 / 7.5 HP AC
  • Tools 20
  • Table Load Capacity 1540 lbs.
  • Rapid Traverse Rates (X & Y / Z) 787 / 590 IPM
  • Max Tool Diameter 3.1" / 4.9"
  • Max Tool Length 9.8"
  • Max Tool Weight 17.6 lbs.
  • Machine Dimensions (L x W x H) 97.6" x 88.6" x 109.1"
  • Machine Weight 13,200 lbs.
  • Spindle Nose to Table Top 5.9" - 26"
  • Tool Change Time (T - T / C - C) 1.5 / 5.2 Seconds

Product Features

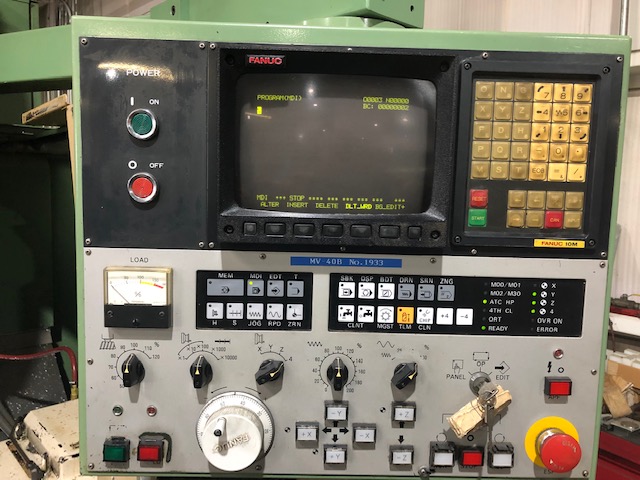

  • MORIC MF-M4 (FANUC 10M) CNC CONTROL
  • 9" Monochrome CRT
  • Victor TC 230F Fourth Axis Rotary Table

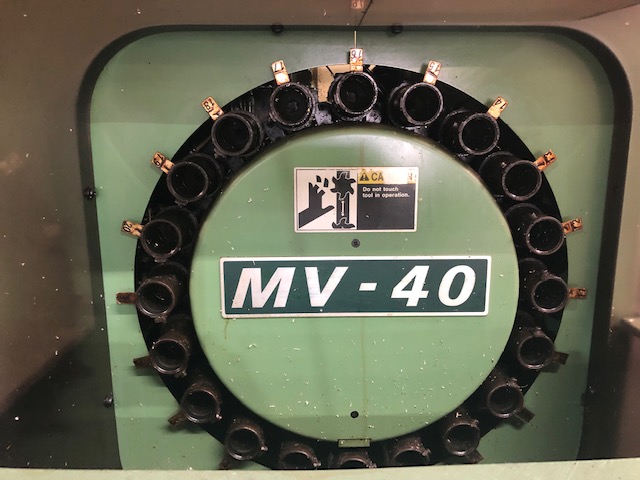

  • 20 Position SMTC
  • Rigid Tapping
  • Helical Interpolation
  • Full Enclosure
  • Two Gear Range Headstock
  • Flood Coolant
  • Heavy Duty Box Way Construction
