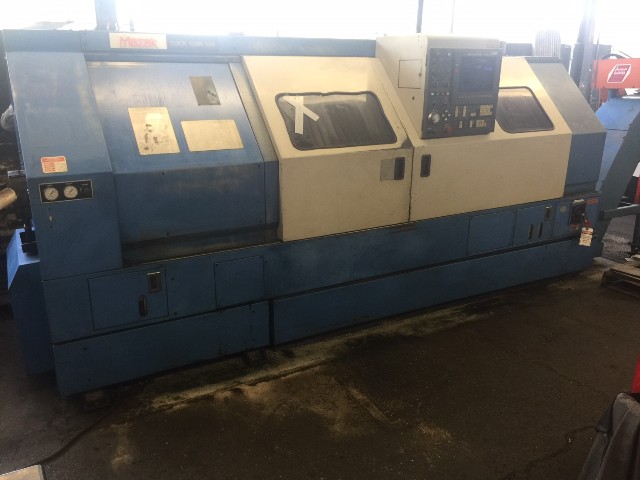

1989 MAZAK QUICK TURN 35N/1500

T32-2, 2.75" Bar, 12" Chuck, 60" Length, 15.75" Max Dia, 3000 RPM, 40 HP, 12D/24P Turret, Tool Eye, Chip, Tailstock
Talk to a representative today!
(803) 548-8000

Product Details

  • Chuck Size 12"
  • Max Diameter Bar Capacity 2.75"
  • Max Swing Over Bed / Carriage 20.08" / 16.93"
  • Spindle Motor 40 / 30 HP AC
  • Spindle Speed 6 - 3000 RPM
  • Spindle Nose A2-8
  • Spindle Bore 3.15"

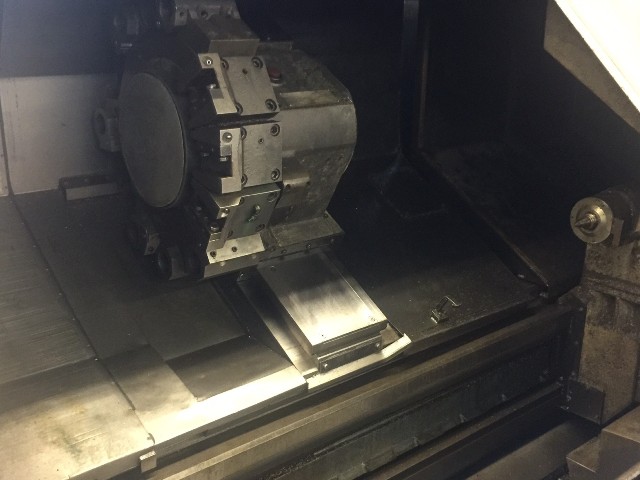

  • Tools 12D / 24P
  • Rapid Traverse Rates (X / Z) 472 / 709 IPM
  • X-Axis Travel 11.02"
  • Z-Axis Travel 61.3"
  • Turret Index (Single Step / Full) 1.0 / 2.8 Seconds
  • Machine Dimensions (L x W x H) 165.5" x 81" x 74.2"
  • Machine Weight 13,000 lbs.
  • Max Cutting Length 59.3"
  • Max Turning Diameter 15.75"
  • Spindle Torque 1017 ft. lbs.

Product Features

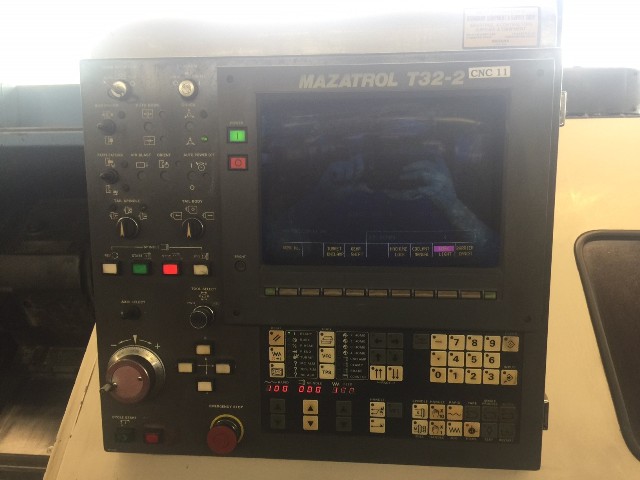

  • MAZATROL T32-2 CNC CONTROL
  • 14" Color CRT
  • Conversational Programming
  • Graphic Display

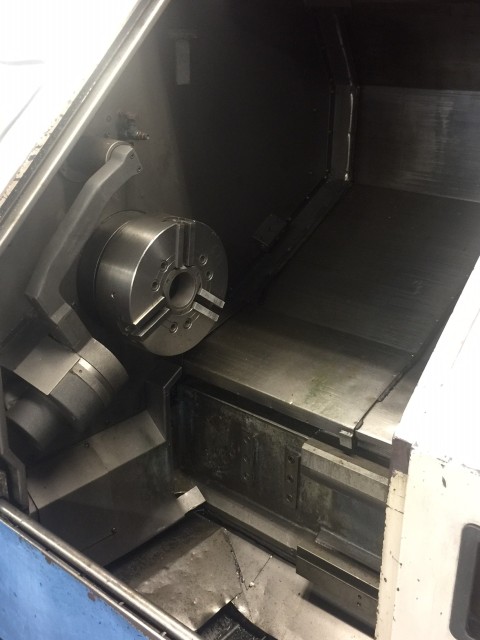

  • 12" Hydraulic 3-Jaw Chuck
  • Programmable Tool Eye
  • Jorgensen Chip Conveyor(Side Exit)
  • Programmable Tailstock
  • Multi-Tap Transformer
  • Three Gear Range Headstock
  • Heavy Duty Box Way Construction
