Special Item

1989 MAZAK AJV-25/405

Mazatrol M-32, 39.20.18", 3150 RPM, Cat 50, 25HP, 30 Tools, ATLM
Talk to a representative today!
(803) 548-8000

Product Details

  • X-Axis 39.37"
  • Y-Axis 20"
  • Z-Axis 18.11"
  • Table Size 48.81" x 21.65"
  • Spindle Speed 22 - 3150 RPM
  • Spindle Taper CAT 50

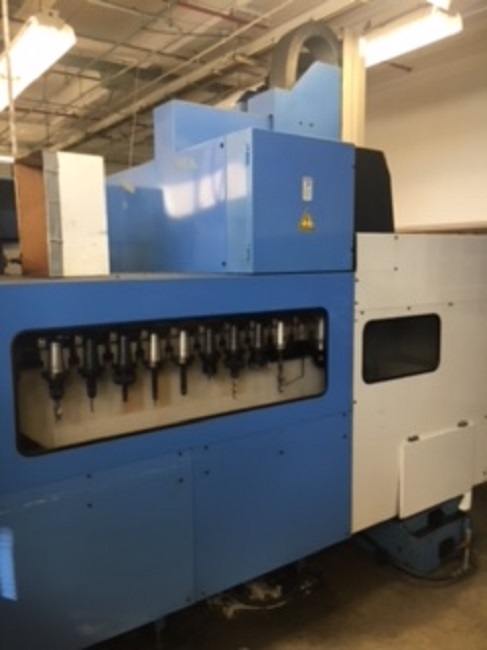

  • Tools 30
  • Table Load Capacity 1760 lbs.
  • Rapid Traverse Rates (X & Y / Z) 945 / 708 IPM
  • Max Tool Diameter 4.92" / 5.9"
  • Max Tool Length 11.81"
  • Max Tool Weight 33 lbs.
  • Machine Dimensions (L x W x H) 101.18" x 148.81" x 119.13"
  • Machine Weight 17,000 lbs.
  • Main Motor 25 / 20 HP AC
  • Spindle Nose to Table Top 7.87" - 25.98"
  • Spindle Torque 207.5 ft. lbs.

Product Features

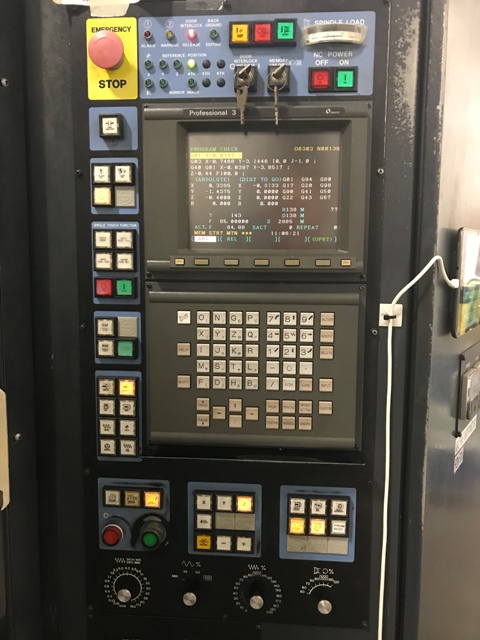

  • MAZATROL M-32A CNC CONTROL
  • 14" Color CRT
  • Conversational Programming
  • EIA/ISO Input Function
  • Graphic Display
  • Auto Tool Length Measurement
  • Rigid Tapping
  • Helical Interpolation
  • Mfg Date February 1989
