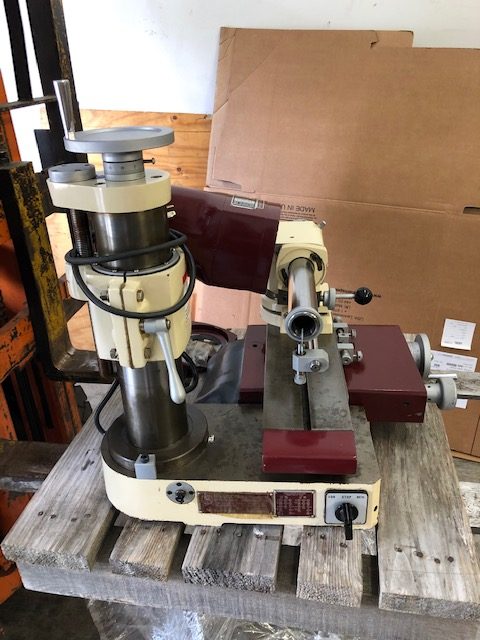

0 CHEVALIER FCG-610 Universal Tool & Cutter Grinder

8" Swing, 10" Length, 0.33 HP Motor, 3450 RPM,
Talk to a representative today!
(803) 548-8000

Product Features

  • 10 Inch Distance Between Tailstock
  • 8 Inch Swing Over Table

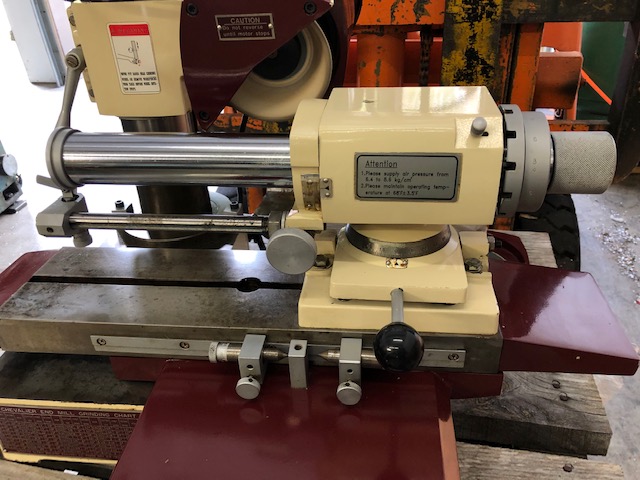

  • 18.5 Inch x 5.25 Inch Table Size
  • 10 Inch Longitudinal Table Travel
  • 6.5 Inch Saddle Travel
  • 3450 RPM Wheel Speed
  • 0.33 HP Motor
  • 6.3125 Inch Vertical Adjustment of Wheel Head
  • 360 Degree Swivel Adjustment of Column
  • 360 Degree Vertical Tilting Range of Wheel Head

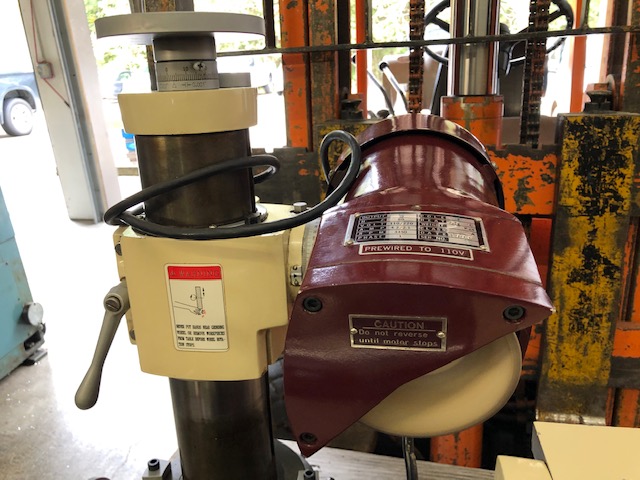

  • 5 Inch OD x 1.5 Inch ID Wheel Diameter

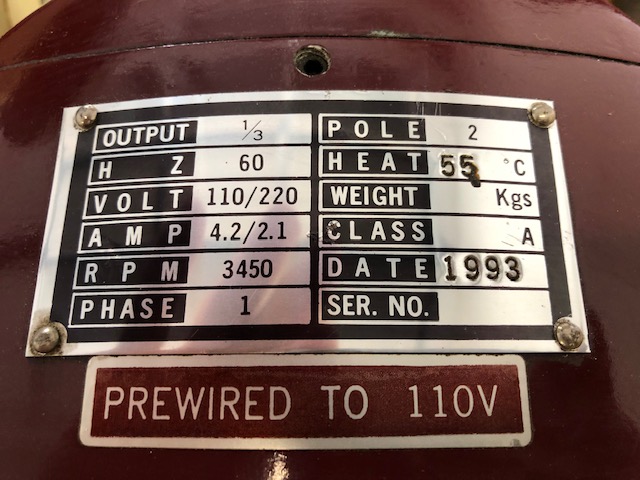

  • 110/220 Volt Power
  • 4.2/2.1 Amps Required
  • 275 lbs. Machine Weight
  • 30 L x 27 D x 30 H Inch Machine Dimensions
  • Manufacture Date 1993
